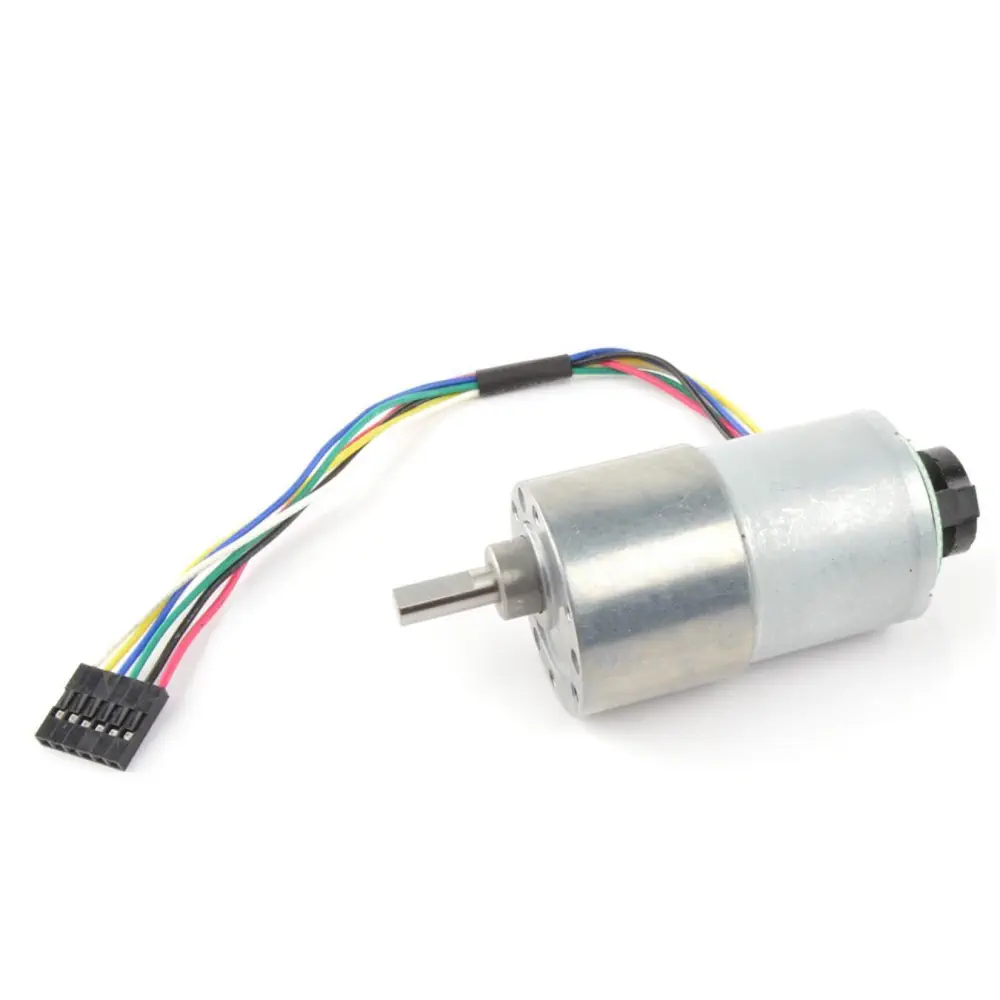

This 12V DC geared motor with encoder features a 131:1 metal gearbox and built-in quadrature encoder, delivering low-speed, high-torque output with integrated rotational feedback. The encoder output enables position and speed detection, making this drive suitable for robotics, autonomous vehicles, motion control systems and feedback-based mechanisms requiring reliable feedback and torque at low speeds.
Product Description
General Description
This 12V DC geared motor with encoder combines a DC motor, a metal gearbox with a 131:1 reduction ratio, and an integrated encoder circuit into a compact actuator assembly. The gear reduction increases torque and provides a lower output speed, while the encoder offers rotational feedback useful for closed-loop control and monitoring.

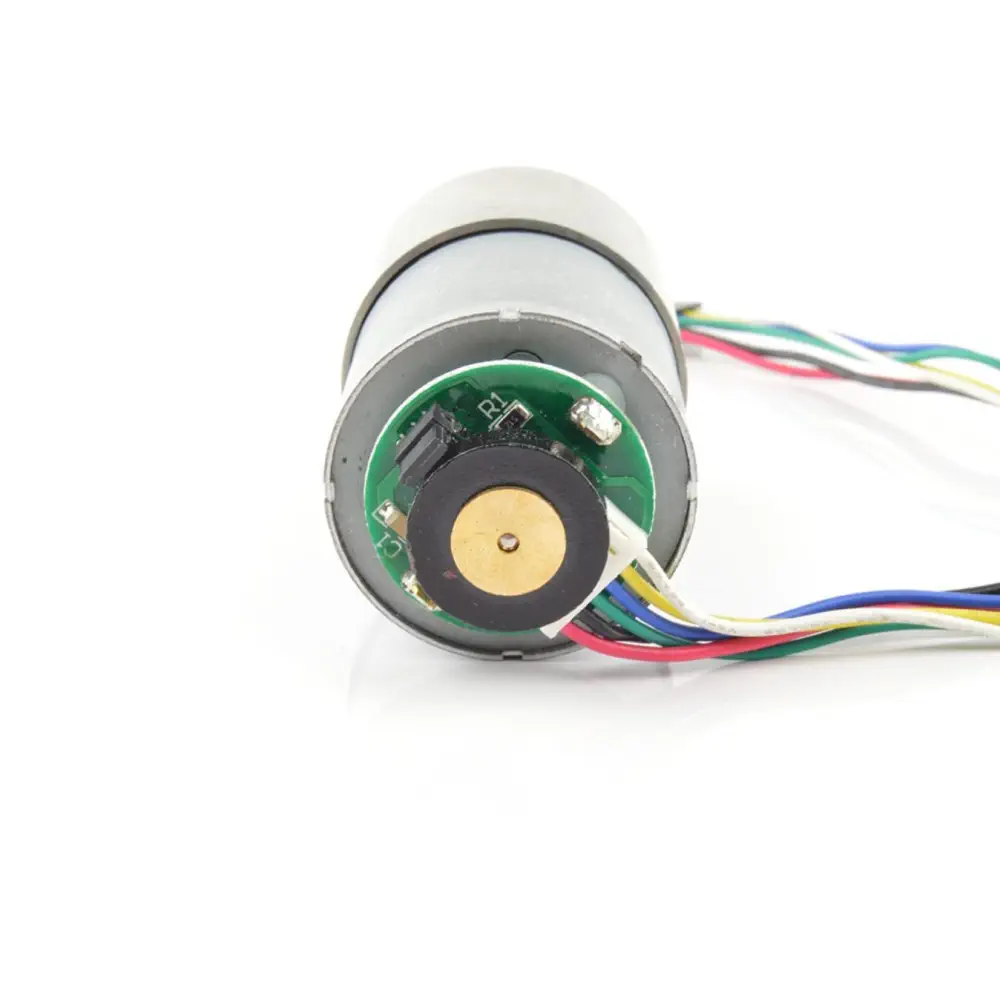

The encoder generates quadrature signals corresponding to motor shaft rotation, supporting applications that require position or speed sensing integrated with the power train.
Mechanical / Electrical Characteristics
-
Nominal Voltage: 12V DC
-
Gear Reduction Ratio: 131:1
-
No-load Speed: approx. 83 RPM
-
Rated Speed: approx. 68 RPM
-
Rated Torque: moderate torque at reduced speed
-
Stall Torque: high torque under load
-
Shaft Type: D-shaped output shaft with approx. 6 mm diameter
-
Encoder Type: quadrature encoder for shaft feedback
This motor is designed for medium duty motion applications and is not recommended for continuous high-current loads or heavy industrial torque requirements.
Typical Use Cases
-
Mobile robotics drive systems
-
Feedback motion control assemblies
-
Autonomous vehicle steering or wheel hubs
-
Positioning mechanisms with encoder feedback
-
Educational robotics and prototype systems
Basic Specifications
-
Input Voltage Range: 12V DC
-
Gear Ratio: 131:1
-
No LOAD Speed: approx. 83 RPM
-
Rated Speed: approx. 68 RPM
-
Rated Torque: approx. 113 oz-in
-
Stall Current: ~7 A
-
Stall Torque: ~625 oz-in
-
Shaft Diameter: approx. 6 mm (D-shape)
Actual output torque and speed may vary with load conditions and supply voltage.
Notes Before Installation
-
Use a regulated 12V DC power supply for stable performance
-
Ensure encoder wiring is separated from high-current motor leads to reduce noise
-
Avoid continuous heavy stall conditions to preserve gearbox and encoder life
-
Confirm correct polarity and proper mounting before energizing
Package Includes
-
1 × 12V DC Geared Motor with Encoder (131:1 reduction)
