Product Description

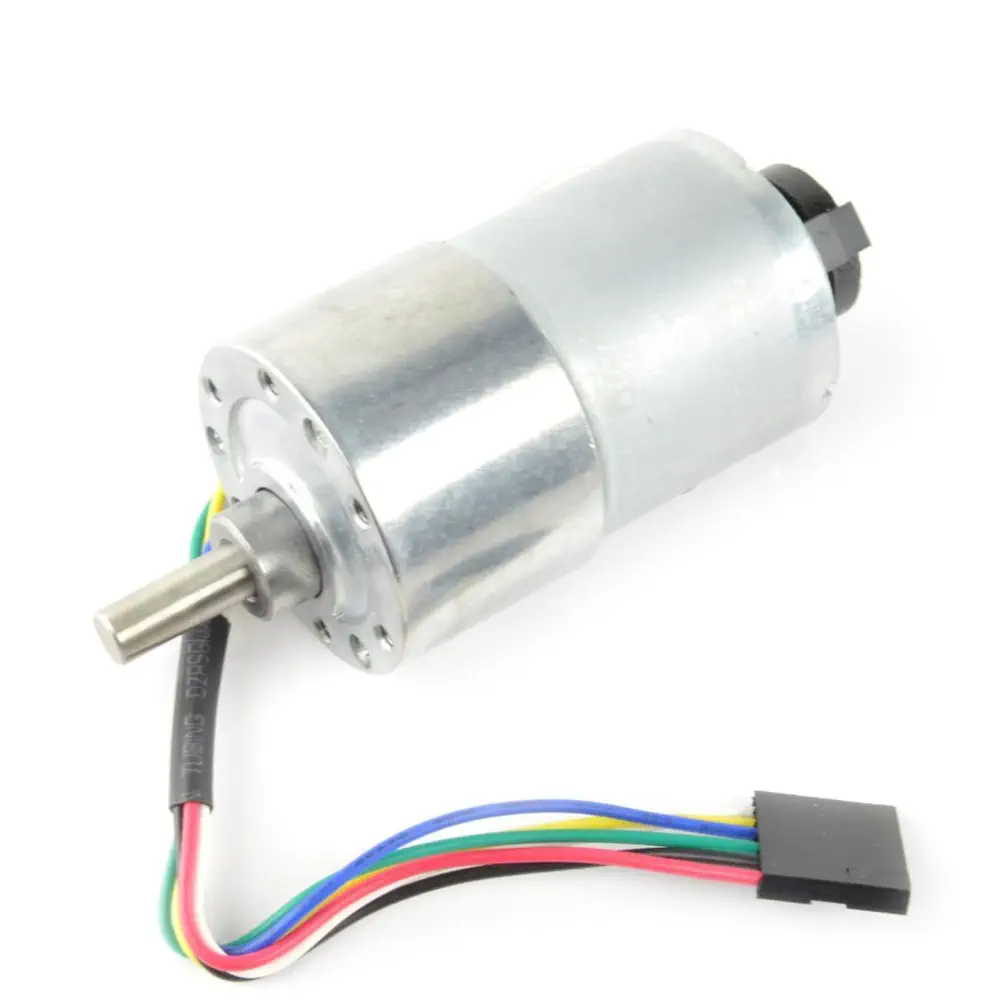

The 12V DC Motor 251 RPM with Encoder is a powerful DC gearmotor with integrated encoder for feedback and precision control. With a nominal speed of 251 RPM, durable 43.7:1 metal gearbox, and Hall-effect quadrature encoder, this motor provides reliable motion and accurate shaft position sensing — ideal for mobile robots, autonomous platforms, and feedback-controlled motion systems.
Key Features
-
Nominal 12V DC operation for wide robotics compatibility
-
Integrated quadrature encoder for feedback and control
-
251 RPM no-load speed with strong torque
-
43.7:1 metal gearbox for torque multiplication
-
D-shaped 6 mm output shaft for secure coupling
-
Rugged, compact design for embedded motions systems
Technical Specifications
-
Motor Type: Brushed DC gear motor with encoder
-
Nominal Voltage: 12V DC
-
Gear Ratio: 43.7:1
-
No-load Speed: 251 RPM
-
Rated Speed (approx): 204 RPM
-
No-load Current: ~0.35 A
-
Stall Current: ~7 A
-
Rated Torque: ~45 oz·in
-
Stall Torque: ~250 oz·in / 18 kg·cm
-

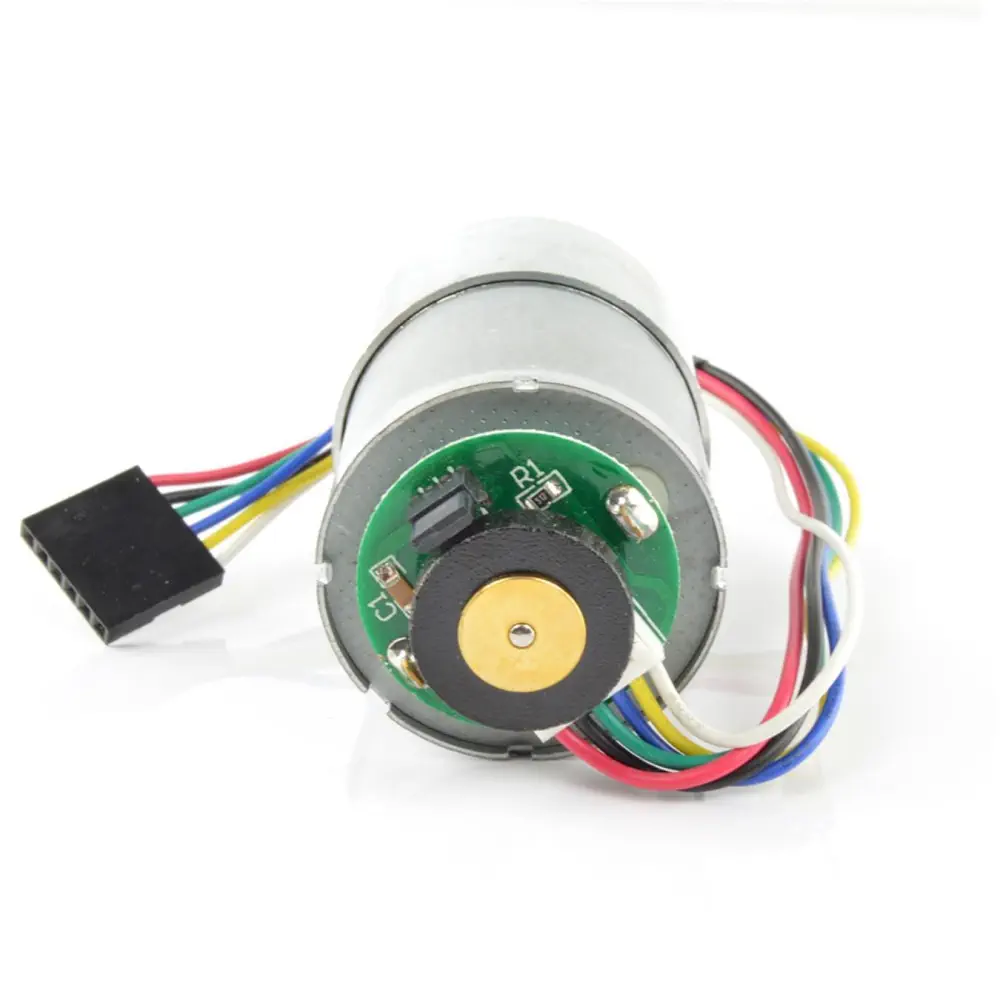

Encoder: Hall-effect quadrature type (16 counts per motor revolution ≈700 counts at output shaft)
-

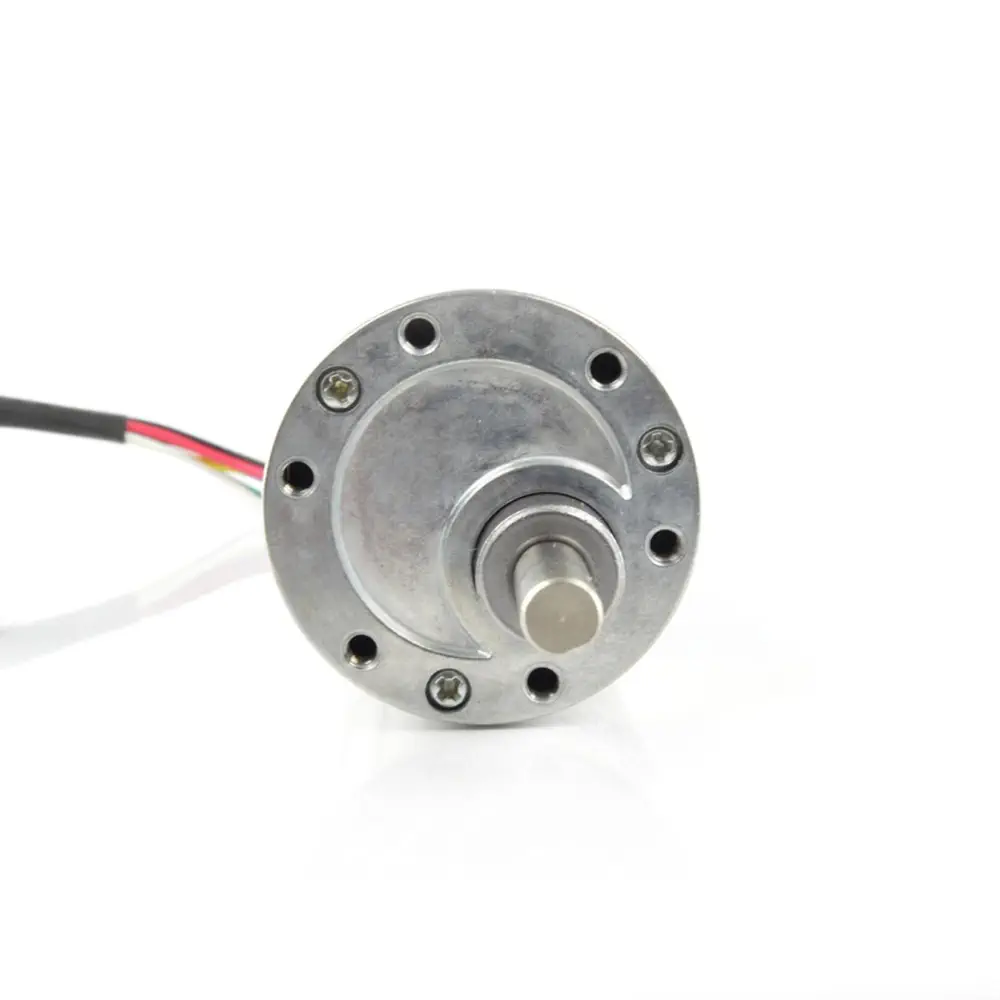

Shaft: 6 mm D-shaped, 15 mm long
-
Dimensions: 37 mm diameter × 53 mm length
-
Weight: ~205 g
Typical Applications
-
Closed-loop control in mobile robots
-
Position and speed controlled systems
-
Differential drive robot chassis
-
Automated guided vehicles and platforms
-
Feedback-based robotic actuations
Package Include:
1 × 12V DC Motor 251 RPM with Integrated Encoder
