Description:

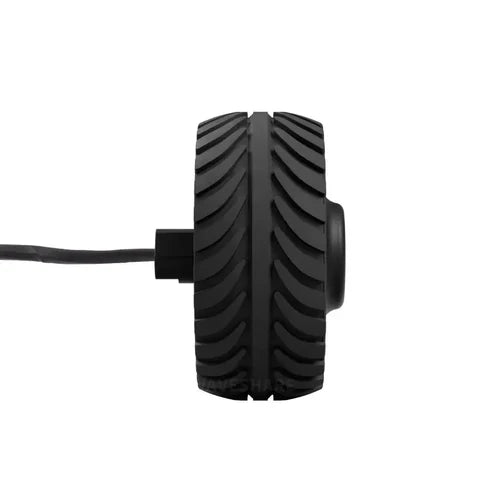

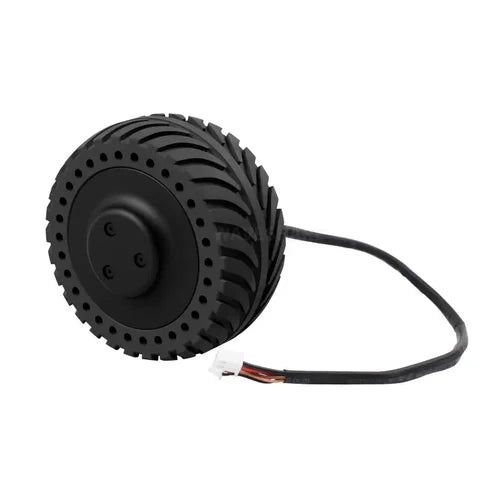

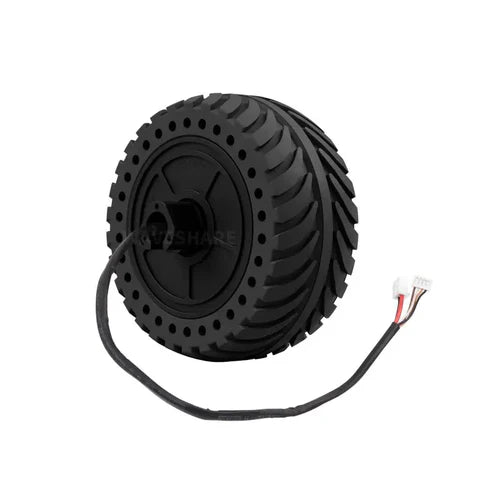

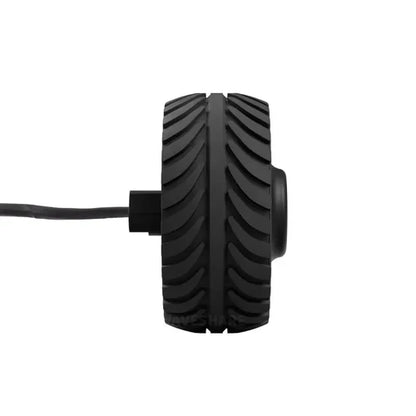

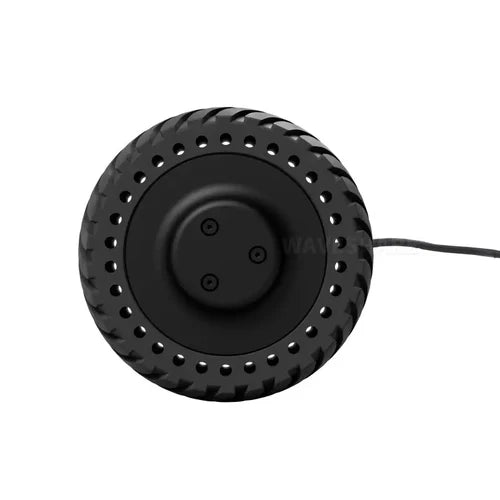

The DDSM115 Direct Drive Servo Motor with Wheel Hub is a high-performance, all-in-one Permanent Magnet Synchronous Motor (PMSM) designed for demanding applications requiring high torque, low noise, and precise control. Combining an outer rotor brushless motor, encoder, and servo in a compact package, this motor eliminates the need for a traditional gearbox by utilizing advanced direct drive technology, ensuring zero backlash and ultra-fast response.
With a noise level below 50dB and support for multiple operating modes, including current loop, position loop, and velocity loop, the DDSM115 is highly versatile. It also features RS485 communication, making integration into robotic, industrial, or fitness equipment systems seamless.
The motor delivers low-speed, high-torque performance, with a rated torque of 0.96 Nm and a locked-rotor torque of 2.0 Nm, making it ideal for home robots, commercial robots, and other precision machinery. Its robust IP54-rated design ensures reliable operation in varied environments.
Key Features:
-
All-in-one design: Combines motor, encoder, and servo for compact, reliable performance
-
Direct drive: Eliminates gearbox, providing zero-backlash and fast response
-
High torque, low noise: Ideal for precision applications and quiet operation
-
Multiple operating modes: Current loop, position loop, velocity loop
-
RS485 communication: Easy integration with controllers and automation systems
-

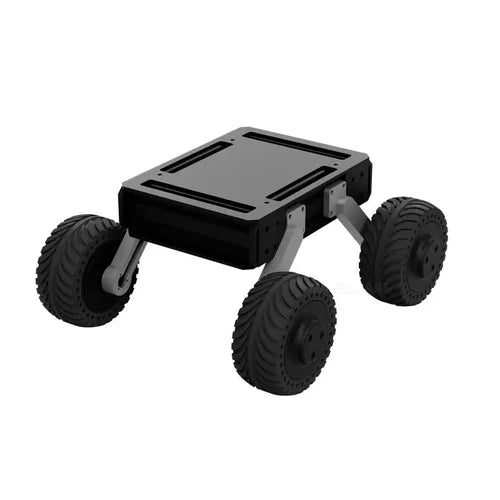

Versatile applications: Home robots, industrial robots, fitness equipment, and more
Specifications:
-
Dimensions: 100.7 x 43 x 50.5 mm (L x W x H)
-
No-load speed: 200 ± 10 rpm
-
Rated speed: 115 rpm
-
No-load current: ≤ 0.25 A
-
Rated current: 1.25 ± 0.05 A
-
Rated torque: 0.96 Nm
-
Locked-rotor torque: 2.0 Nm
-
Locked-rotor current: ≤ 2.7 A
-
Encoder resolution: 4096
-
Noise level: ≤ 50 dB
-
Operating temperature: -20 ~ 45 °C
-
Degree of protection: IP54
-
Rotor inertia: 1.67 kg·m²
-
Rated voltage: 18 V DC (5S LiPo)
-
Phase resistance: 2.15 Ω
-
Phase inductance: 3.6 mH
-
Torque constant: 0.75 Nm/A
-
Speed constant: 11.1 rpm/V
-
Number of pole pairs: 10
-
Mechanical time constant: 30 ms
-
Weight: 759 g
Package Includes:
-
1x DDSM115 Direct Drive Servo Motor, High Torque, Low Noise, Wheel Hub
Applications:
Home robotics, industrial automation, service robots, fitness and rehabilitation equipment, and other scenarios requiring high-torque, low-speed precision motion.
