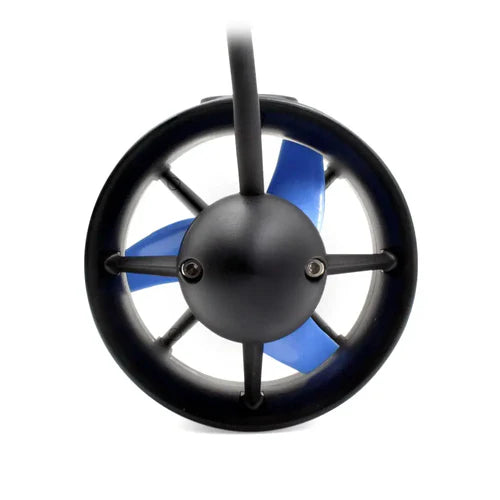

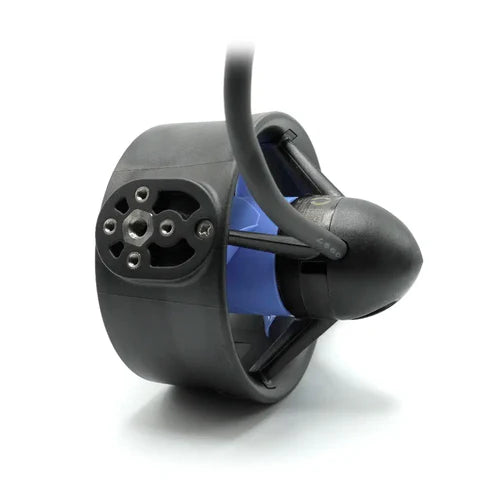

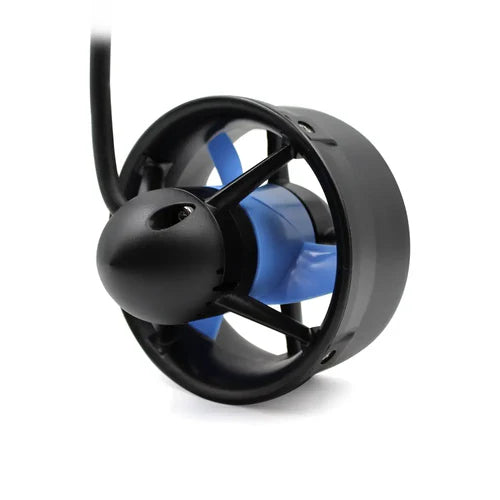

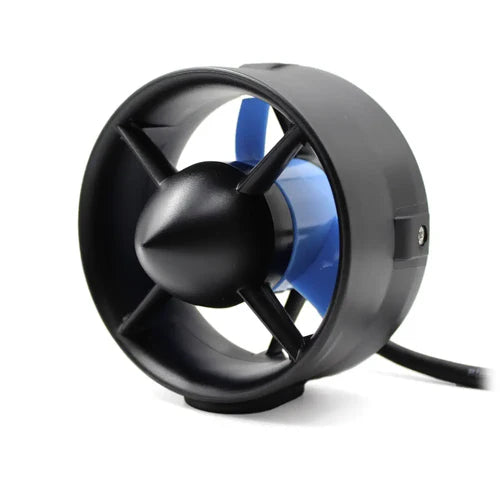

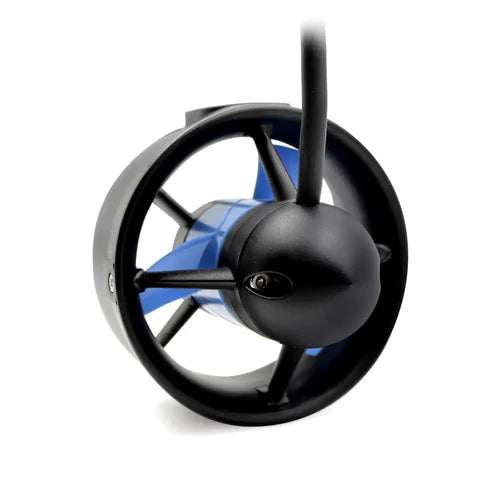

BlueRobotics T200 Thruster w/o Speed Controller – High-Performance 6.7 kgf Underwater Motor for ROVs & AUVs

Product Description:
The BlueRobotics T200 Thruster w/o Speed Controller is a high-performance underwater thruster designed for remotely operated vehicles (ROVs), autonomous underwater vehicles (AUVs), and surface vessels. With a robust flooded motor design, it delivers powerful thrust up to 6.7 kgf while maintaining a compact form factor (113 mm length × 100 mm diameter).

Operating efficiently across a 7–20V range, the T200 Thruster is highly versatile for a variety of marine robotics applications. Its construction utilizes durable materials including polycarbonate, epoxy, stainless steel, and other marine-grade components, ensuring long-lasting performance in demanding underwater environments.

The thruster comes with clockwise and counterclockwise propellers and features straightforward installation and maintenance, making it a top choice for professionals in marine robotics and research. It is widely recognized for its integration into platforms such as the BlueROV2.

Specifications:

• Full throttle forward/reverse thrust at 12 V: 3.71 / 2.92 kgf

• Full throttle forward/reverse thrust at 16 V (nominal): 5.25 / 4.1 kgf

• Full throttle forward/reverse thrust at 20 V (max): 6.7 / 5.05 kgf

• Operating voltage: 7–20 V

• Full throttle current/power at 12 V: 17 A / 205 W

• Full throttle current/power at 16 V: 24 A / 390 W

• Full throttle current/power at 20 V: 32 A / 645 W

• Wetted materials: Polycarbonate 10% glass-filled, epoxy, stainless steel 316, plastic, polyurethane, Buna-N

• Mounting hole threads: 4× M3x0.5, 1× M6x1.0

• Recommended installation torque: 0.5–1.3 N·m (M3), 3–5 N·m (M6)

• Propeller diameter: 76 mm

What's Included:

• 1× BlueRobotics T200 Thruster w/o Speed Controller

• 1× T200 Thruster

• 1× Clockwise propeller (installed)

• 1× Counterclockwise propeller

Key Features:

• Powerful thrust: Up to 6.7 kgf

• Versatile voltage operation: 7–20V

• Marine-grade durability: Polycarbonate, epoxy, stainless steel

• Compact and easy to install: 113 mm × 100 mm

• Ideal for ROVs, AUVs, and marine robotics projects

Note: Always follow proper handling and installation procedures to ensure safe underwater operation.
