Description:
The 125:1 Metal Gearmotor 20Dx44L 6V CB with Extended Shaft is a compact yet powerful DC gearmotor designed for precision applications requiring high torque in a small form factor. Equipped with a long-life carbon-brushed 6V motor, this gearmotor delivers reliable performance with a no-load speed of 120 RPM and a stall torque of 87 oz-in.

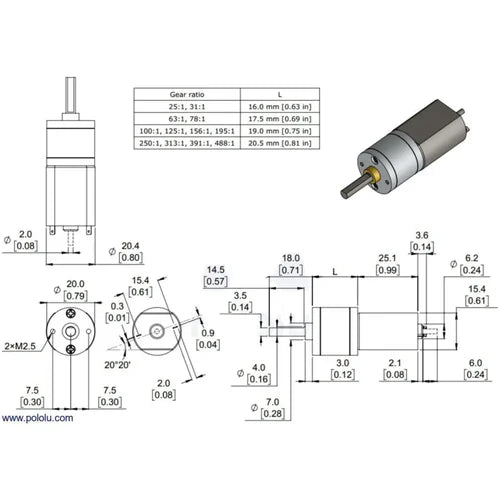

Featuring a durable 125:1 metal spur gearbox, the motor converts high-speed, low-torque rotation into low-speed, high-torque output efficiently. Its cylindrical 20 mm diameter body and extended D-shaped 4 mm output shaft (18 mm from the gearbox face) make it ideal for easy mounting and integration into robotics, automation systems, or DIY electronics projects. The motor also includes a 6 × 2 mm extended motor shaft for additional versatility.
Key Features:
-
Long-life carbon brushed 6V DC motor for reliable performance
-
High torque with 125:1 metal spur gear reduction
-
No-load speed: 120 RPM; stall torque: 87 oz-in
-
Compact dimensions: 20D × 44L mm; lightweight at 46 g
-
Extended 4 mm D-shaped output shaft, 18 mm length
-
Ideal for robotics, automation, and precision hobby projects
Specifications:
-
Gear Ratio: 125:1
-
Nominal Voltage: 6V
-
No Load Current: 170 mA
-
Stall Current: 2.9 A
-
Shaft Diameter: 4 mm
-
Weight: 46 g
What’s Included:
1 × 125:1 Metal Gearmotor 20Dx44L 6V CB with Extended Shaft
