Product Overview:
The DGA25-2418 12V Brushless DC Gear Motor is a high-performance, low-noise motor designed for precision micro-automation applications. Featuring full metal gears, a pure copper rotor coil, and frequency conversion control technology, this motor ensures long-lasting, efficient, and reliable operation. Its compact size, adjustable speed, and support for bidirectional rotation make it ideal for robotics, smart devices, and other automation equipment.
Key Features:
-
Low Noise & Long Life: Brushless design reduces wear and tear, providing up to 10x longer lifespan than brushed motors.
-
Adjustable Speed & PWM Control: Supports speed adjustment via a compatible speed controller.
-
Full Metal Gears: Ensures smooth, stable operation with enhanced wear resistance.
-
High-Efficiency Brushless Motor: Frequency conversion technology improves energy efficiency compared to carbon brush motors.
-
Bidirectional Rotation: CW or CCW with support for reverse operation.
-
Pulse Signal Output: Provides speed feedback for precise control.
-
Overcurrent & Stall Protection: Safeguards motor and connected devices.
-
Safe DC Connection: Verified safe up to 36V.
-
Wide Voltage Options: Available in DC 12V and DC 24V configurations.
Specifications:
-

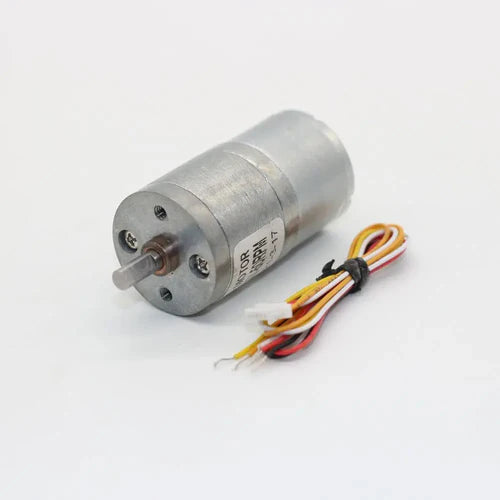

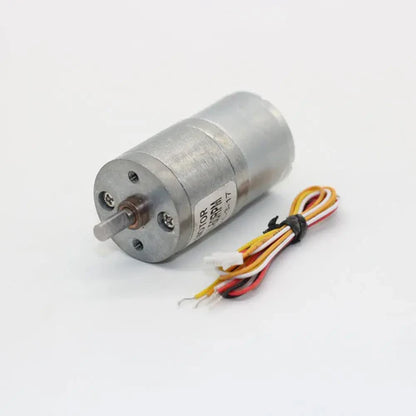

Motor Model: DGA25-2418 Brushless DC Geared Motor
-
Voltage: DC 12V / DC 24V
-
No-Load Speeds (DC12V): 1000, 450, 210, 130, 100, 58, 45, 26, 20, 12, 9 RPM
-
No-Load Speeds (DC24V): 2000, 930, 420, 260, 200, 115, 90, 52, 40, 24, 18 RPM
-
Rated Torque (DC12V): 0.03–4 KG.CM; Stall Torque: 0.2–24 KG
-
Rated Torque (DC24V): 0.15–16.5 KG.CM; Stall Torque: 0.6–24 KG
-

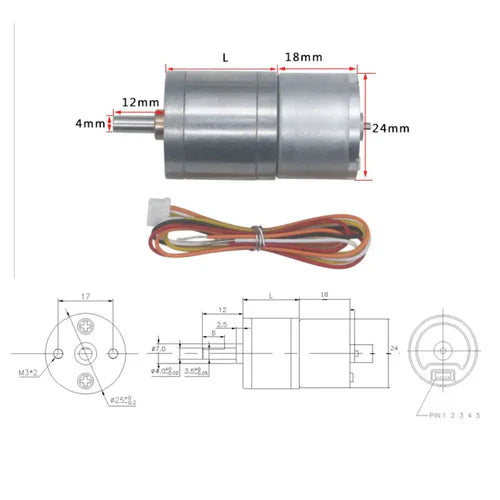

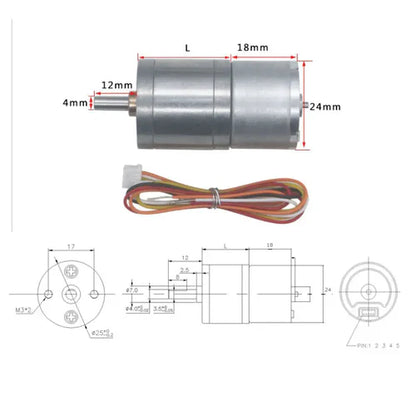

Motor Diameter: 25mm
-
Motor Body Length: 18mm
-
Output Shaft Diameter: 4mm (D-Type)
-
Output Shaft Length: 9.5mm
-
Motor Total Length: 54mm
-

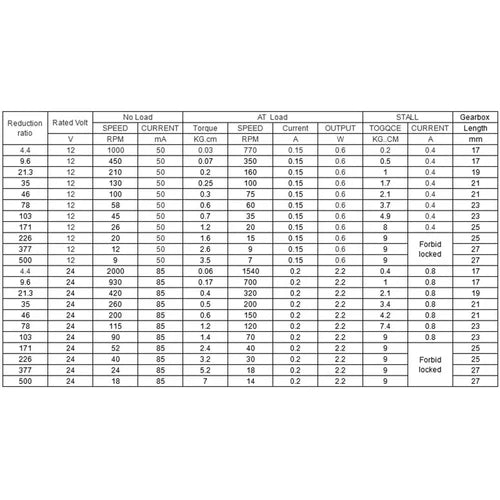

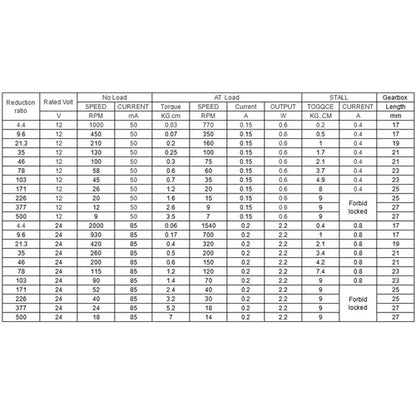

Gearbox: All-metal, length varies by reduction ratio (see parameter table)
Wiring and Control:
-
Red Line: Power +
-
Black Line: Power –
-
Yellow Line: FG Output, 22 signals/rev
-
Orange Line: CCW/CW Control (vacant = CCW; connected to Power – = CW)
-
White Line: Speed adjust
Applications:
Ideal for small robots, automated devices, smart equipment, and other micro-automation projects where durability, efficiency, and precise control are required.
What’s Included:
-
1 × DGA25-2418 Brushless DC Geared Motor
Dimensions:
-
Motor: 25mm × 35mm × 54mm
-
Shaft Length: 14mm
