Description

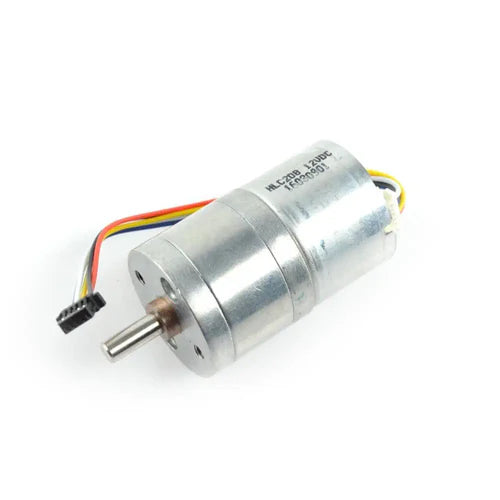

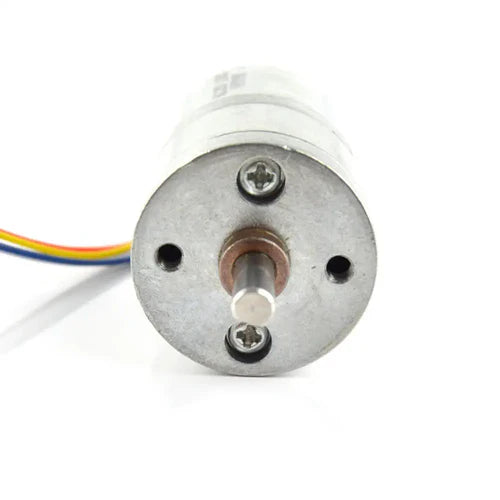

The 12V, 159RPM, 33.33oz-in Brushless DC Gearmotor is a compact and efficient motor designed for robotics and automation projects. Featuring a built-in motor driver, it offers simplified integration and reliable performance. With directional control, PWM speed regulation, and feedback output, this gearmotor is ideal for Arduino-based systems and mobile robotic platforms. Its durable metal gear construction ensures high torque and long service life, while the encoder feedback enables precise motion control.
Key Features
• Built-in driver for easy integration, can be connected directly to Arduino
• Directional control for flexible forward/reverse operation
• PWM speed control for variable speed adjustment
• Speed feedback output for accurate motion control
• Compact size, suitable for mobile robotics and automation applications
Specifications
• Operating Voltage: 12V
• Rated Motor Speed: 7100–7300 rpm
• Gear Reduction Ratio: 45:1
• Output Speed: ~159 rpm
• Stall Torque: 2.4 kg·cm (≈33.33 oz-in)
• Encoder Signal Cycle Pulse Number: 6 × 45
• Control Mode: PWM speed control, direction control, feedback pulse output
What’s Included
• 1 × Brushless DC Gearmotor with Encoder
PDF file
