Description

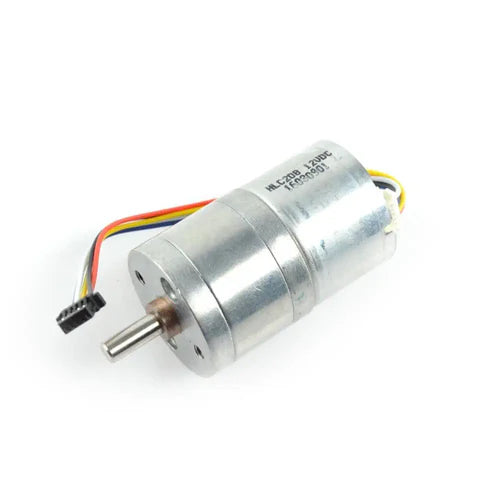

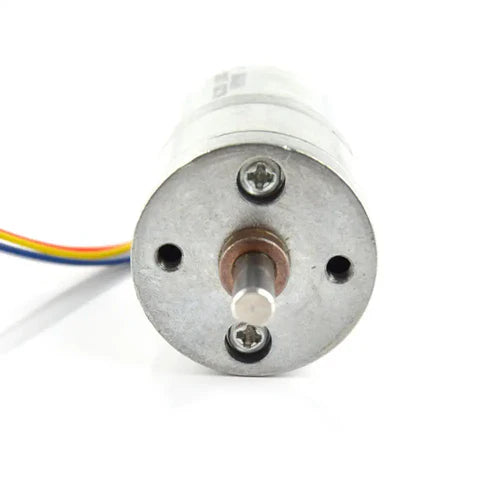

The 12V 159RPM 33.33oz-in Brushless DC Gearmotor is a compact and efficient motor designed for robotics and automation applications. Featuring a built-in driver, it can be connected directly to Arduino or other microcontrollers without requiring an external motor driver. This makes it highly convenient for mobile robots, smart platforms, and DIY automation systems.
With its PWM speed control, directional control, and speed feedback output, the motor provides precise and reliable performance. The integrated planetary gearbox ensures high torque transmission and smooth operation, while the brushless design guarantees low noise, low maintenance, and long service life.
Key Features
• Built-in driver for direct Arduino connection
• Direction and PWM speed control supported
• Feedback pulse output for speed monitoring
• High torque with 45:1 reduction ratio
• Durable metal gear construction for long lifespan
• Compact design ideal for mobile robotic platforms
What's Included
• 1 × 12V Brushless DC Gearmotor with Encoder
Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 12 V DC |
| Rated Motor Speed | 7100 – 7300 RPM |
| Output Speed | 159 RPM (approx.) |
| Reduction Ratio | 45 : 1 |
| Stall Torque | 2.4 kg·cm |
| Torque Output | 33.33 oz-in |
| Control Mode | PWM Speed Control / Direction Control |
| Feedback Signal | Pulse Output (6 × 45 cycles per revolution) |
| Connection | Built-in driver, direct Arduino interface |
| Motor Type | Brushless DC Gearmotor |
| Noise Level | Low |
| Typical Use | Mobile robots, automation systems, smart cars |
Applications
• Arduino robotic platforms
• Autonomous vehicles and smart cars
• Precision automation systems
• Industrial motion control
• Educational robotics kits
