Description

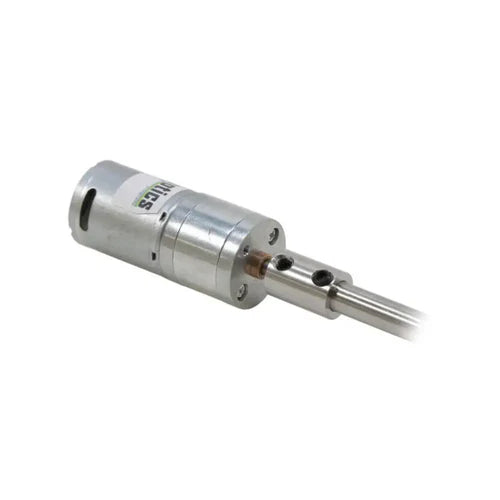

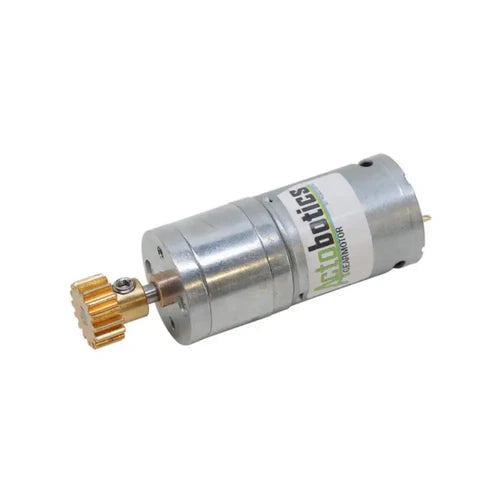

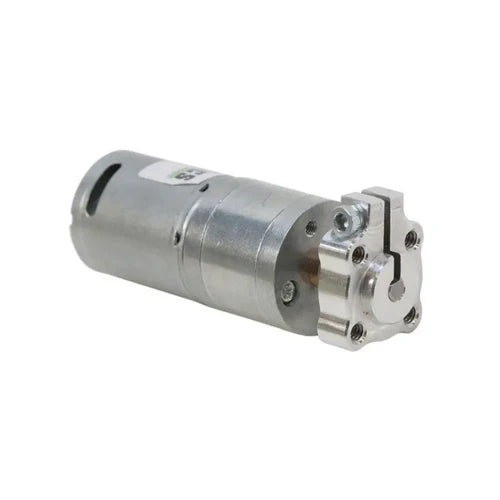

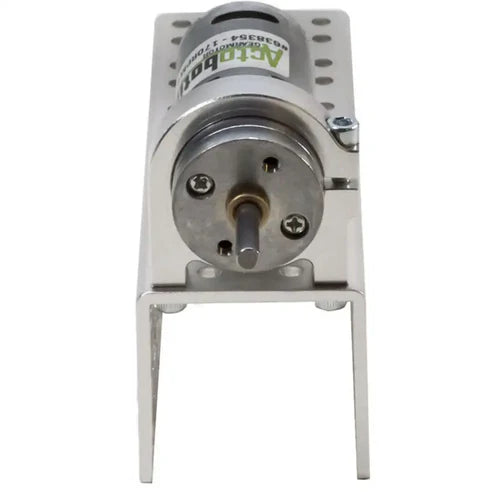

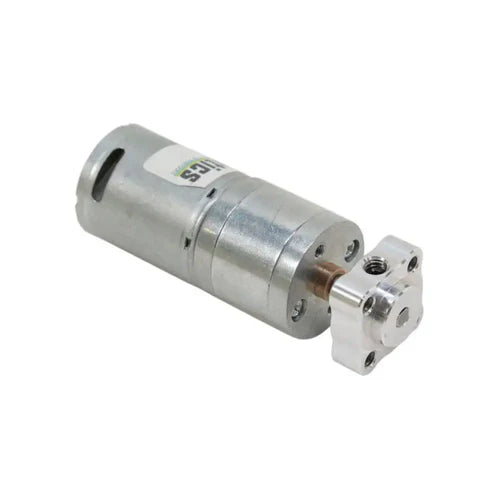

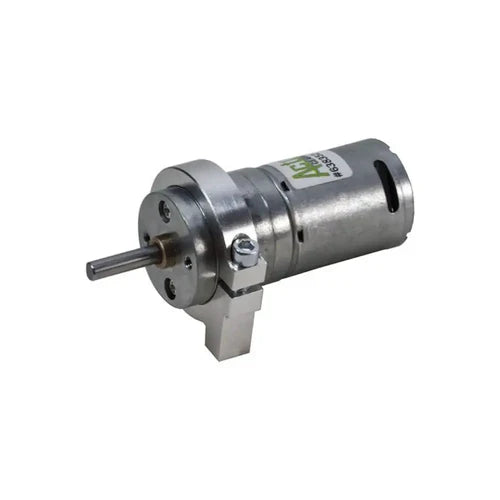

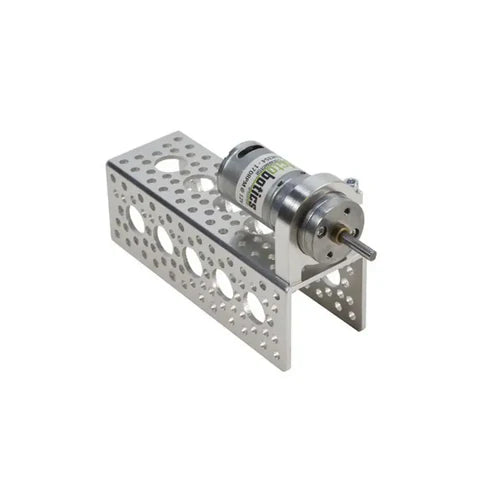

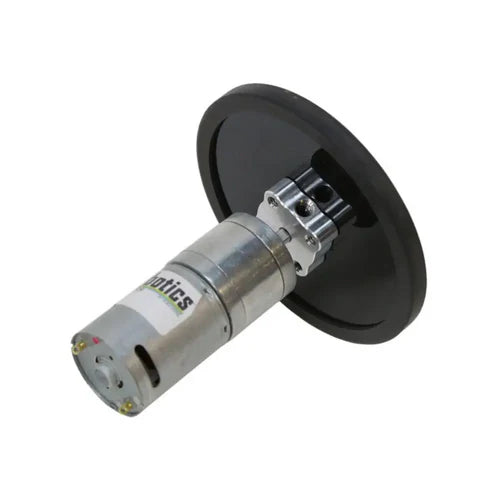

The 12V 170RPM Econ Metal Gearmotor is a compact, efficient, and reliable DC motor designed for robotics, automation, and custom mechanical projects. Built with a durable all-metal gearbox and precision engineering, this motor provides smooth operation, high torque output, and long service life. Its 57:1 gear ratio and straight-cut spur gear design ensure stability and performance in demanding applications.
Features and Specifications
• Rated Voltage: 12V DC
• Speed (No Load): 170RPM
• Maximum Torque: 306.09 oz-in (22.04 kgf-cm)
• No Load Current: 0.10A
• Stall Current: 3.8A
• Gear Ratio: 57:1
• Gear Material: Metal
• Gearbox Style: Straight Cut Spur
• Motor Type: DC Motor
• Output Shaft Diameter: 4mm (0.1575”)
• Output Shaft Style: D-shaft
• Output Shaft Support: Bushing
• Electrical Connection: Male Spade Terminal
• Operating Temperature: -10°C ~ +60°C
• Mounting Screw Size: 3mm
• Product Weight: 0.20 lb (3.25 oz)
Key Benefits
• Compact and lightweight design ideal for small robots, automation systems, and hobby projects
• Durable all-metal gears for long lifespan and high reliability
• High stall torque suitable for driving wheels, arms, or mechanical linkages
• Easy integration with standard 3mm mounting screws and D-shaft couplings
