Product Description:

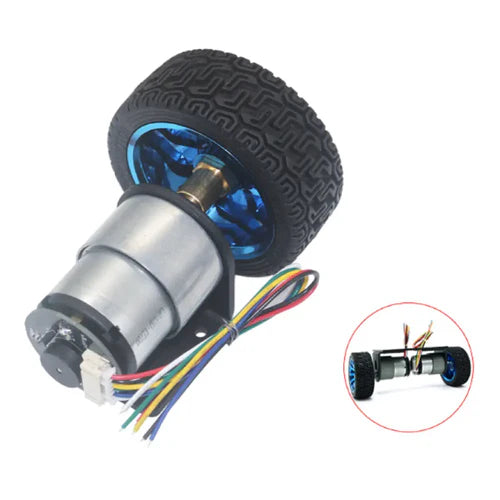

The 12V 37D Metal Gearmotor with 11PPR Encoder & 80D Wheel Kits – 960RPM is a high-performance brushed DC motor designed for precision and strength in robotics, automation, and DIY projects. Engineered for versatility, this gearmotor operates on a voltage range of 6–24V and delivers reliable torque and speed control.
Featuring a metal gearbox with gear ratios ranging from 6.3:1 to 450:1, the motor combines spur gears with helical gears in the first stage to reduce noise and enhance efficiency. Its integrated 2-channel 11PPR quadrature encoder on the motor shaft ensures precise feedback on position and speed, making it ideal for applications requiring accurate motion control.
The motor includes a 21 mm-long, 6 mm-diameter D-shaped output shaft, which enables easy coupling with other mechanical components. The kit also provides all necessary accessories for immediate integration, including an 80D x 35H mm wheel, metal mounting bracket, shaft coupling, and screws for secure assembly.
Specifications:
Motor Model: 37SG-520-10-EN 12V
Rated Voltage: DC 12V
No-Load Current: < 160 mA
No-Load Speed: 960 RPM
Rated Torque: 1 kg.cm
Rated Speed: 540 RPM
Rated Current: < 1.2 A
Stall Torque: 2 kg.cm
Stall Current: < 3.5 A
Dimensions:
Motor: 32.8 mm (Diameter) x 23 mm (Length)
Gearbox: 37 mm (Diameter) x 19 mm (Length)

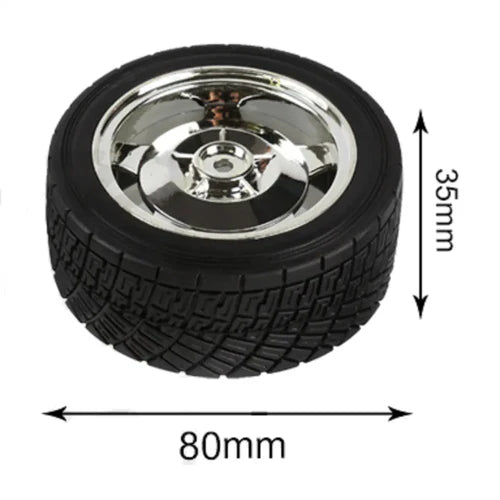

Wheel: 80 mm (Diameter) x 35 mm (Height)

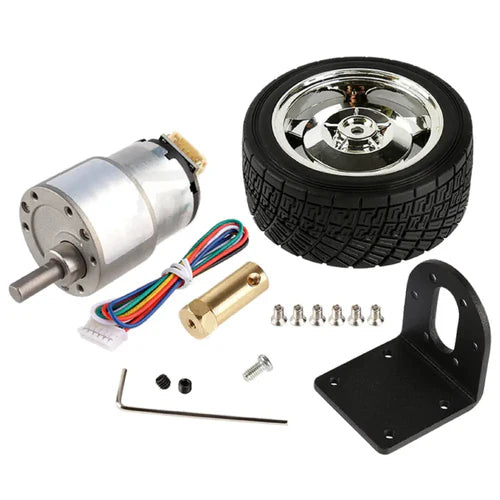

What’s Included:
1x 37D Gear Motor with Encoder
1x 80D Wheel
1x Metal Mounting Bracket
6x Screws
1x Shaft Coupling
This 12V 37D Metal Gearmotor delivers precision, durability, and high torque, making it a perfect choice for robotics, automated vehicles, and mechanical projects requiring reliable, accurate motor control. It is fully RoHS compliant and built to last.
