Product Description

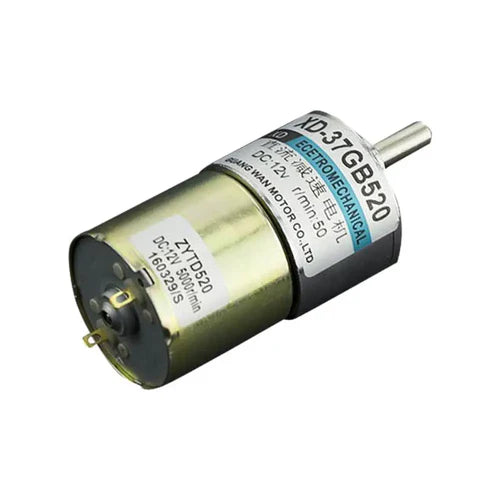

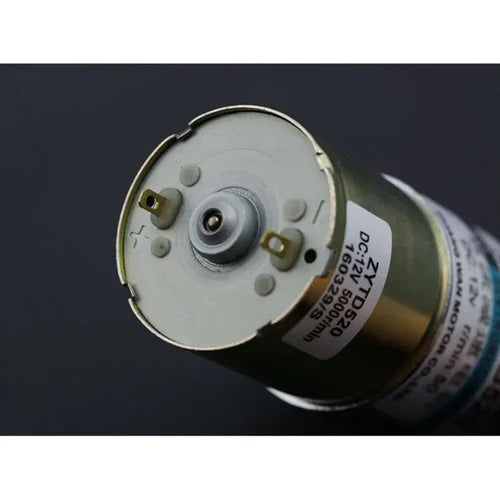

The 12V 50RPM 694 oz-in Brushed DC Motor is a high-performance gear motor designed for applications requiring strong torque output, compact size, and reliable durability. Featuring 100% pure copper coils, a high-density molecular insulation layer, and a precision-engineered 100:1 metal gear reducer, this motor provides excellent efficiency and long service life. With a maximum stall torque of 50 kg.cm and a rated torque of 9 kg.cm, it is ideal for robotics, automation projects, and other mechanical systems demanding stable and powerful motion. Its 6mm D-shaped output shaft ensures a secure and stable connection for various drive components, making it a versatile choice for hobbyists, engineers, and product designers alike.
Key Features
• Rated voltage: 12 V
• Gear reduction ratio: 100:1

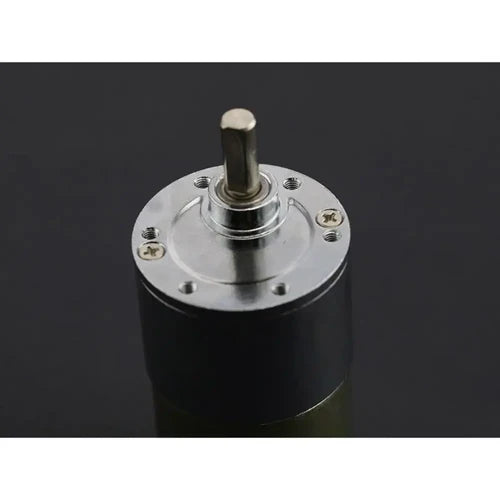

• Shaft type: 6 mm D-shaped output shaft
• Compact size with large torque output
• 100% pure copper coils for improved efficiency and durability
• Metal gear reducer for stable performance and long lifespan
• Maximum stall torque up to 50 kg.cm (694 oz-in)
• Suitable for robotics, automation, and DIY mechanical applications
Specifications
• Rated voltage: 12 V
• Gear reduction ratio: 100:1
• D output shaft diameter: 6 mm
• No-load speed: 50 RPM @ 12 V
• No-load current: 0.17 A
• Rated speed: 45 RPM @ 12 V
• Rated current: 0.68 A
• Rated torque: 9 kg.cm
• Locked-rotor torque: 50 kg.cm
• Locked-rotor current: 2.19 A
• Power: 5 W
• Weight: 210 g
