Description:

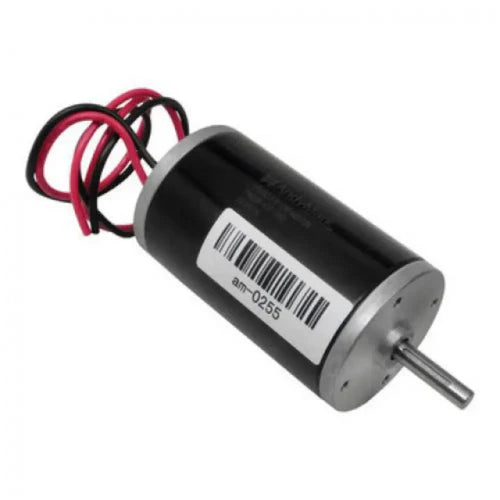

The 12V 5310 RPM "CIM" Brushed DC Motor is a high-performance DC motor designed for robotics, industrial applications, and high-demand mechanical projects. Operating at a nominal voltage of 12V, this motor delivers a no-load speed of 5310 RPM and a rated speed of 4614 RPM, providing reliable and consistent performance for demanding tasks.
Built for power and durability, it features a stall torque of 343.4 oz-in and a stall current of 133 A, making it capable of handling high-load conditions without compromising efficiency. The motor's rated torque is 45 oz-in, ensuring smooth operation under typical load conditions.
The motor comes with a precision-machined keyway shaft, 7.95 mm (0.313 in) in diameter and 31.623 mm (1.245 in) in length, suitable for secure coupling with gears, pulleys, and other mechanical components. Its compact size, measuring 63.5 x 110.236 mm (diameter x length), and robust weight of 1280 g make it ideal for applications requiring both power and reliability.
Specifications:
-
Motor Type: Brushed DC Motor ("CIM")
-
Nominal Voltage: 12 V
-
No Load RPM: 5310
-
No Load Current: 2.7 A
-
Rated RPM: 4614
-
Rated Torque: 45 oz-in
-
Stall Current: 133 A
-
Stall Torque: 343.4 oz-in
-
Shaft Type: Keyway
-
Shaft Diameter: 7.95 mm (0.313 in)
-
Shaft Length: 31.623 mm (1.245 in)
-
Dimensions: 63.5 x 110.236 mm (D x L)
-
Weight: 1280 g
Ideal for high-torque applications in robotics, automation, and industrial projects, this 12V "CIM" motor combines powerful performance with reliable engineering for long-lasting operation.
