Product Description:
The 12V 80RPM High Torque Dual Shaft 31D Motor with worm gear reduction is engineered for high-precision applications requiring robust torque and reliable performance. Featuring a 31mm diameter motor paired with a worm gear reduction, this DC motor delivers exceptional mechanical advantage and a self-locking function to prevent back-driving, making it ideal for robotics, automation, and mechanical projects.

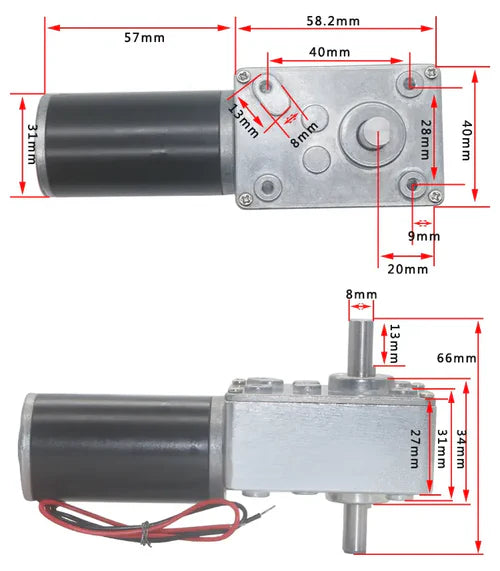

This dual-shaft motor offers two output shafts and four M4 mounting screw holes, ensuring easy and secure installation. The compact design combines a 58 × 40mm gearbox with a 31D × 54mm motor body, allowing versatile integration into various mechanical systems.
Specifications:
-
Model: 5840WG-31ZY-100 12V
-
Rated Voltage: 12V DC
-
Gear Ratio: 1/100
-
No Load Speed: 80 RPM
-
No Load Current: 300 mA
-
Rated Speed: 71.9 RPM
-
Rated Torque: 3.94 Kg·cm
-
Rated Current: 1.15 A
-
Stall Torque: 25.59 Kg·cm
-
Stall Current: 6.5 A
-
Gearbox Size: 58 × 40 mm
-
Motor Size: 31D × 54L mm
Features:
-
High precision and high torque output
-
Self-locking worm gear mechanism
-
Dual shaft design for versatile applications
-
RoHS compliant for environmental safety
This motor is perfect for robotic actuators, automation systems, and custom machinery requiring compact, reliable, high-torque DC motors with precise speed control and easy mounting.
