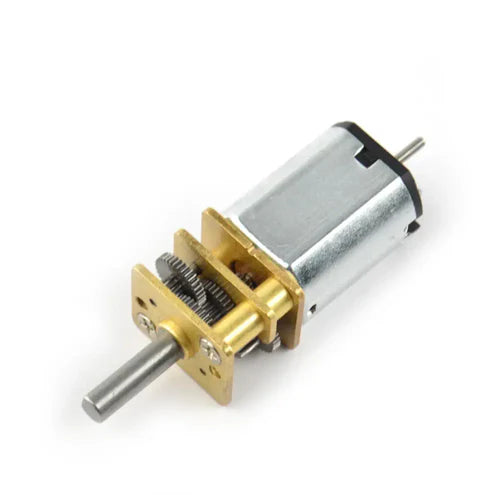

The 12V Pololu 150:1 Micro Metal Gearmotor with Extended Motor Shaft is a compact, high-power brushed DC motor designed for precision robotics and automation projects. Built with long-life carbon brushes and a durable 150.58:1 all-metal gearbox, this motor ensures excellent reliability, torque, and longevity in demanding applications.
Featuring a 10 × 12 mm cross-section and weighing only 9.5 g, it is ideal for space-constrained designs where high torque is required. The D-shaped gearbox output shaft measures 3 mm in diameter and 9 mm long, while the motor also includes a 4.5 × 1 mm extended rear shaft, making it fully compatible with the Pololu 12 CPR Magnetic Encoder Pair Kit for Micro Metal (HPCB compatible).
Key Features
-
Operating Voltage: 12V brushed DC motor
-
Gear ratio: 150.58:1 metal gearbox
-
Long-life carbon brushes for extended durability
-
Extended motor shaft (4.5 × 1 mm) for encoder attachment
-
Lightweight design: 9.5 g
-
Compact size: 10 × 12 × 26 mm
-
D-shaped 3 mm output shaft (9 mm long)
Performance Specifications
-
At 6V:
-
Free-run speed: 100 RPM
-
Stall current: 400 mA
-
Stall torque: 20 oz·in (1.4 kg·cm)
-
-
At 12V:
-
Free-run speed: 200 RPM
-
Free-run current: 100 mA
-
Stall current: 800 mA
-
Stall torque: 40 oz·in (2.9 kg·cm)
-
Applications
Perfect for use in:
-
Robotics drive systems
-
Compact automation equipment
-
Precision mechanisms
-
Encoder-based feedback control projects
