Description

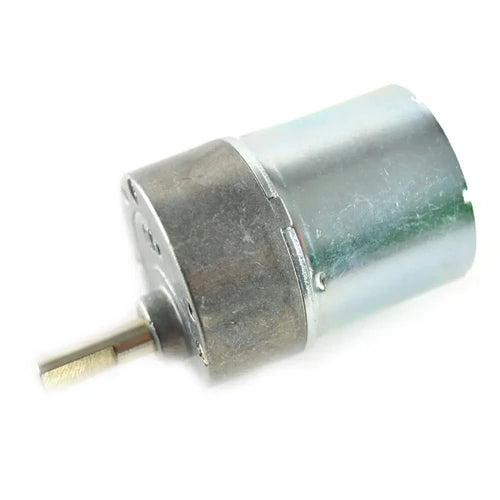

The 12VDC 200RPM 8.6oz-in GHM-01 Spur Gear Head Motor is a compact yet powerful DC gearmotor, specially designed for small robotics and automation projects. Equipped with an integrated 30:1 spur gear reduction system, this motor delivers strong torque at low speeds without the need for an additional reduction mechanism. Perfect for robot propulsion, it can be paired with wheels and a motor controller for reliable performance in robotics applications.
This gear motor is widely used in DIY robotics, educational robot kits, and custom automation projects. With a 6mm D-shaped shaft for secure mounting, it ensures easy integration with hubs, tires, and mounting brackets.
Accessories (Compatible Options)
• Robot Motor Mount
- Motor Mount
• Hub and Pneumatic Tires
- 3-1/2'' Off Road Robot Tire
• Universal 6mm Hub and Foam Tires
- Universal Hub
- 2-1/8'' Sumo Tire
- 2-1/2'' Sumo Tire
- 2-7/8'' Sumo Tire
- 2-1/8'' Ant/Beetle Tire
Dimensions
Size: 37D x 45L mm
Weight: 155 g
Shaft Diameter: 6 mm
Shaft Length: 18 mm
Specifications
Gear Ratio: 30:1
Nominal Voltage: 12V
No Load RPM: 200
No Load Current: 0.09A
Rated RPM: 177
Rated Torque: 8.61 oz-in
Stall Current: 1.4A
Stall Torque: 62.5 oz-in
Shaft Type: D-Shaped
