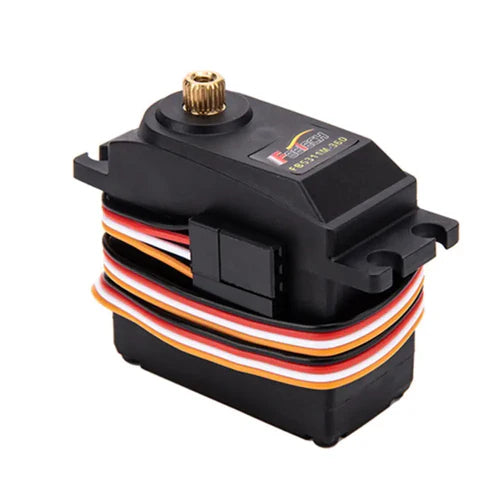

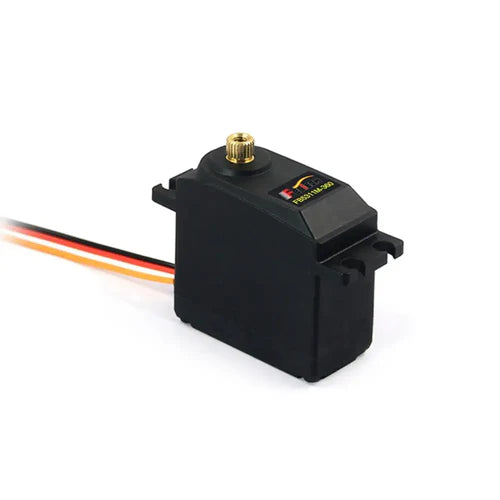

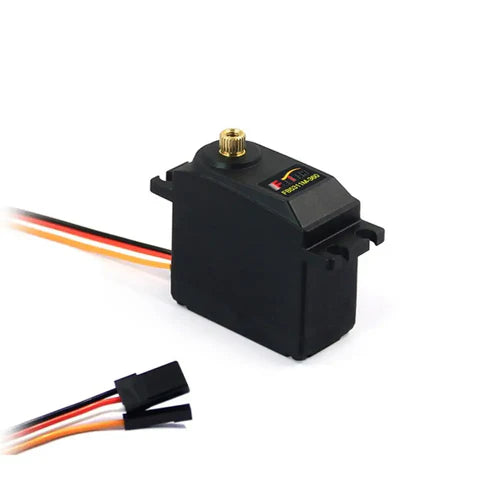

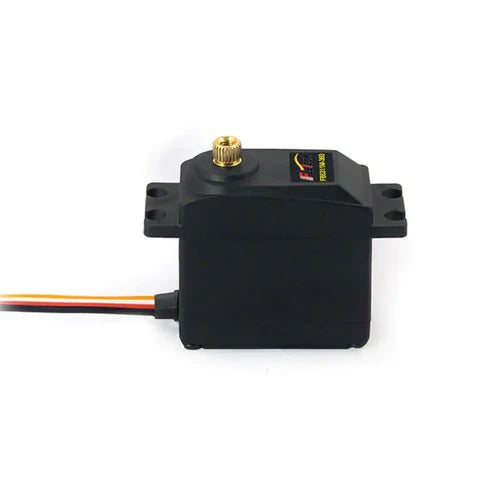

15kg Continuous Turn Servo with Feedback – Copper Gear, Ball Bearings, 360° Rotation

Product Description:
The 15kg Continuous Turn Servo with Feedback is a high-performance servo designed for precise continuous rotation applications. Featuring copper gears and a core motor, this servo delivers durability, smooth operation, and reliable torque for robotics, RC vehicles, and automation projects. Its ball bearing support ensures low friction and long-lasting performance, while the POM plastic horn with a 25T / 5.9 mm spline allows secure and versatile mounting options.

With 360° continuous rotation, this servo offers a no-limit rotation angle and adjustable rotation direction: clockwise, counterclockwise, or stop via PWM signals. It operates across a wide voltage range of 4–8.4 V, achieving a no-load speed of 50 RPM at 6 V and a peak stall torque of 15.5 kg·cm at 6 V, making it suitable for both light and medium-duty tasks.

Specifications:

• Gear Type: Copper

• Horn Type: Plastic, POM

• Horn Gear Spline: 25T / 5.9 mm

• Bearing: Ball bearings

• Case Material: PA + Fiberglass

• Motor Type: Core Motor

• Operating Voltage: 4 – 8.4 V

• No-Load Speed: 50 RPM at 6 V

• Rated Torque: 5 kg·cm at 6 V

• Peak Stall Torque: 15.5 kg·cm at 6 V

• Idle Current: 6 mA at 6 V

• Running Current (No Load): 200 mA at 6 V

• Stall Current: 1.7 A at 6 V

• Rotation: 360° Continuous Turn (500 → 2000 μsec PWM)

• Rotating Direction: Clockwise (1500–2000 μsec), Stop (1500±20 μsec), Counterclockwise (1000–1500 μsec)

• Weight: 65.5 ± 1 g

• Size: 40.1 × 20.1 × 38.8 mm (L × W × H)

• Connector Wire Length: 30 cm

• Operating Temperature Range: -15 ~ 70 °C

• Storage Temperature Range: -30 ~ 80 °C

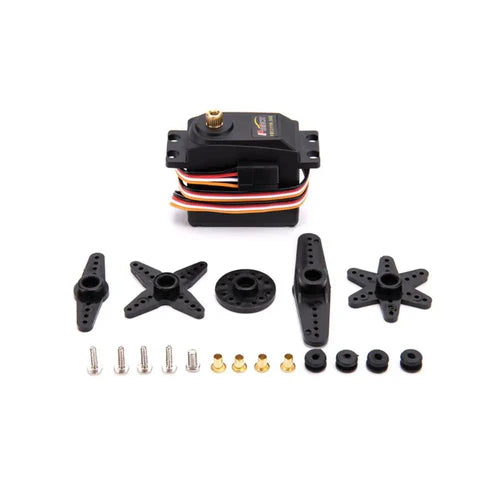

What’s Included:
1 × 15kg Continuous Turn Servo with Feedback

Ideal For: Robotics projects, RC cars, automation systems, conveyor mechanisms, and other applications requiring precise continuous rotation control.
