Product Description

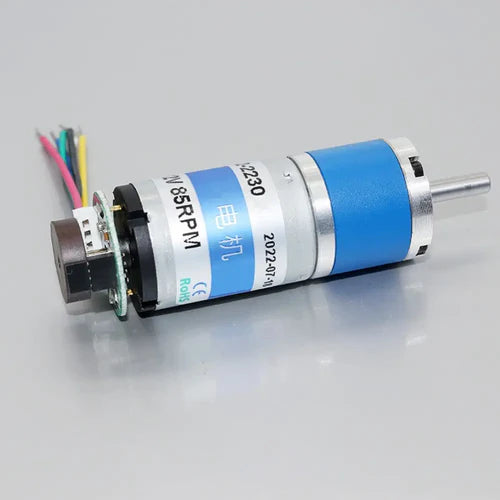

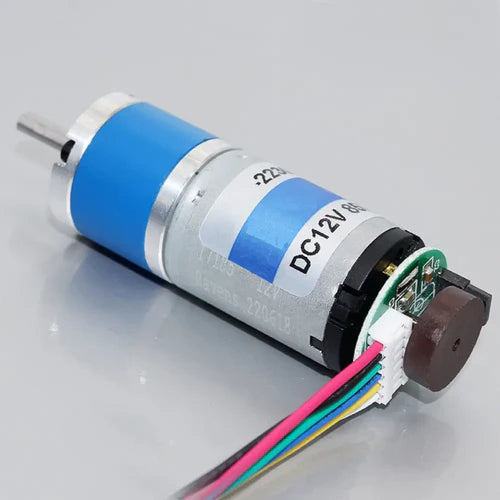

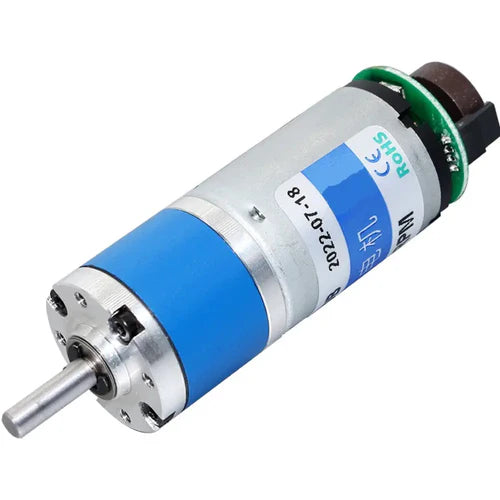

The 22mm Planetary Gear Motor with 12V Encoder, 185RPM is a compact and high-performance brushed permanent magnet DC motor equipped with a precision planetary gearbox and integrated magnetic encoder. Designed for automation, robotics, and motion control applications, this motor offers excellent torque, low backlash, and reliable position feedback.
Built with a 22mm planetary gear box, the motor delivers high efficiency and durability, making it suitable for continuous operation in demanding environments. Its CW/CCW reversibility and availability in various gear ratios provide flexibility for diverse project requirements.
A two-channel magnetic encoder with 16 pulses per rotation (PPR) is included, ensuring accurate real-time feedback on motor rotation and positioning—ideal for closed-loop control systems and precise motion applications.
Key Features
-
Brushed permanent magnet DC motor for stable performance
-
22mm planetary gearbox with high efficiency and low backlash
-
Magnetic encoder (2-channel, 16 PPR) for real-time position feedback
-
Various gear ratios available, with CW/CCW reversible rotation
-
Compact size for easy integration into automation projects
Specifications
-
Model: 22PG 2230 49 EN 12V
-
Nominal Voltage: 12V DC
-
Reduction Ratio: 1/49
-
No Load Speed: 185 RPM
-
Rated Speed: 160 RPM
-
Rated Torque: 2 kg·cm
-
Stall Torque: 8.5 kg·cm
Dimensions
-
Gearbox: Ø22 mm × 21 mm length
-
Motor: Ø22 mm × 30 mm length
-
Shaft: Ø4 mm × 15 mm, D-shaped
Applications
This 22mm planetary gear motor is widely used in:
-
Robotics and robotic joints
-
Automation systems
-
CNC machinery
-
Precision instrumentation
-
Smart DIY projects requiring torque and accurate positioning
