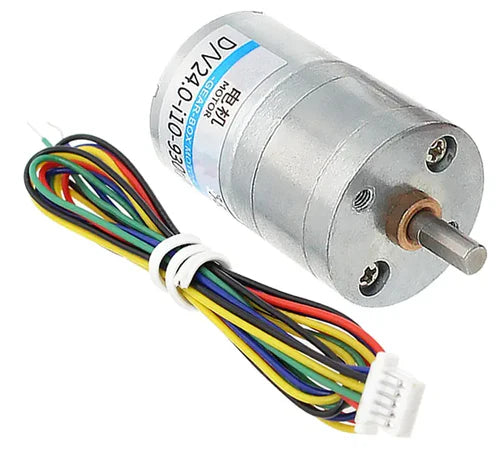

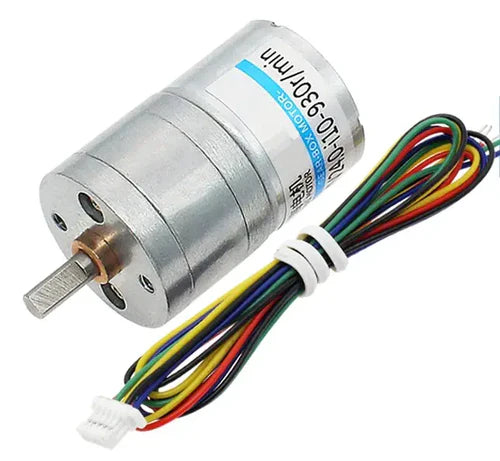

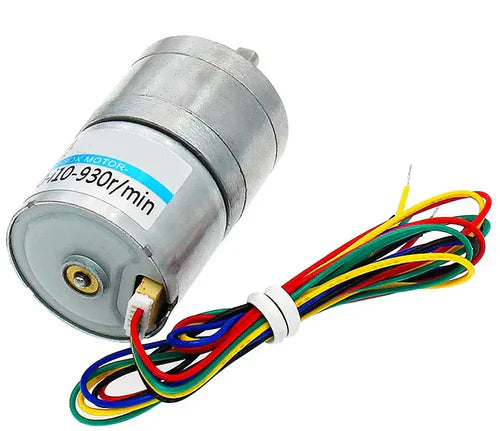

24mm Brushless DC Gear Motor – 6V 175RPM High Torque Metal Gearbox

Product Description

The 24mm Brushless DC Gear Motor – 6V 175RPM is a compact and durable motor solution designed for high torque, long lifetime, and smooth, efficient performance. This motor integrates a BLDC motor with a built-in driver, eliminating the need for an additional external driver or controller, making it easy to use in a wide range of applications.

Constructed entirely from high-quality metal and lubricated with permanent grease, the motor ensures long service life and low maintenance. Its spur gearbox design provides excellent torque output while maintaining low noise operation, making it suitable for robotics, automation systems, precision equipment, and other electromechanical applications.

With its small form factor and reliable brushless technology, this gear motor delivers powerful performance at low speeds while maintaining peak efficiency at higher speeds. This combination results in improved reliability, reduced operational costs, and superior performance compared to traditional brushed gear motors.

Key Features

• BLDC motor with built-in driver – no external driver/controller required

• All-metal construction – durable and reliable

• Permanent grease lubrication – ensures long lifetime and smooth operation

• High torque, low noise, and long service life

• Compact size – ideal for space-constrained applications

Specifications

• Model: 25SG-2418BL-34 6V

• Operating Voltage: 6V DC

• Reduction Ratio: 1:34

• No-load Speed: 175 RPM

• No-load Current: < 170 mA

• Rated Torque: 0.55 kg·cm

• Rated Speed: 108 RPM

• Rated Current: < 450 mA

• Stall Torque: > 1.7 kg·cm

• Stall Current: < 0.8 A

Dimensions

• Gearbox: 25mm (Diameter) × 21mm (Length)

• Motor: 24mm (Diameter) × 18mm (Length)

• Shaft: 4mm (Diameter) × 12mm (Length), D-shaped
