Product Description:

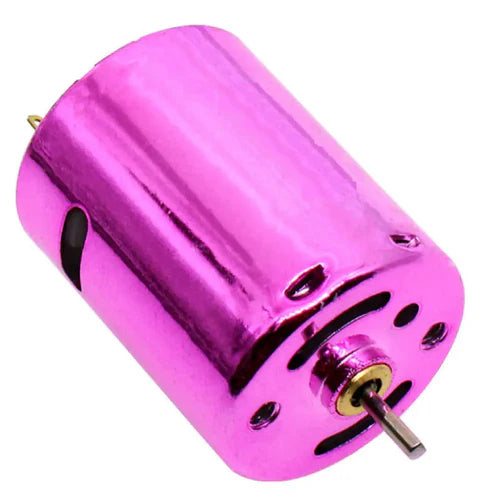

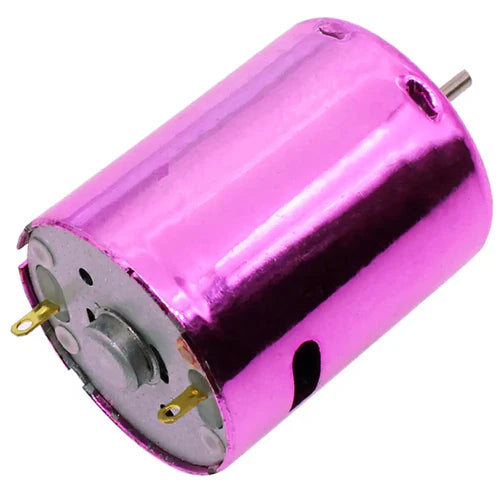

The 24mm High-Speed Mini DC Motor (RS370WP) is a compact, high-performance carbon brush motor designed for demanding applications requiring speed, efficiency, and durability. Equipped with strong NdFeB permanent magnets and 2 precision ball bearings, this motor ensures stable operation, minimal wear, and smooth rotation even under high-speed conditions. Its slow heat conduction design reduces overheating, prolonging motor life during intensive use.
Key Specifications:
-
Model: RS370WP
-
Voltage: 11.1V DC
-
No-load Speed: 65,000 RPM
-
No-load Current: 2 A
-
Maximum Efficiency Power: 119 W
-
Maximum Efficiency Torque: 200 g·cm
-
Maximum Efficiency Current: 14.4 A
-
Maximum Efficiency Speed: 57,000 RPM
-
Maximum Power: 278 W
-
Maximum Power Torque: 830 g·cm
-
Maximum Power Current: 51 A
-
Maximum Power Speed: 33,750 RPM
-
Stall Torque: 1,600 g·cm
-
Stall Current: 104 A
Motor Dimensions:
-
Motor Body: 24.4 mm diameter × 30.8 mm length
-
Shaft Length: 9.5 mm
Features & Benefits:
-
High-Speed Performance: Reaches up to 65,000 RPM for high-demand applications.
-
Durable Construction: Carbon brushes, ball bearings, and wear-resistant design ensure longevity.
-
Thermal Management: Slow heat conduction reduces risk of overheating.
-
Strong NdFeB Magnets: Provides high torque and reliable magnetic performance.
Applications:
Ideal for water gel ball guns, hair clippers, electric razors, puzzle toys, novelty gadgets, and household appliances requiring compact, high-speed motors.
This 24mm high-speed DC motor combines precision engineering with compact dimensions, delivering superior performance and efficiency for a wide range of high-speed applications.
