Key Features
-
Precision Planetary Gearbox: 28mm planetary gearbox ensures high torque and smooth operation.
-
High-Efficiency Rotor: Pure copper wire rotor provides strong magnetic induction, excellent conductivity, low energy loss, and high efficiency.
-
Durable Bearings: D-type bearing with high-quality carbon brush for long-lasting performance.
-
Low Noise & Low Current: Operates quietly with minimal power consumption and no sparks.
-
Compact & Versatile: Micro DC motor ideal for small spaces, yet powerful for various applications.
Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | DC 24V |
| No-load Speed | 111 RPM |
| Torque | 17KG·CM |
| Shaft Diameter | 6mm |
| Shaft Length | 14mm |
| Motor Dimensions | 25mm × 35mm × 54mm |
| Gearbox | 28mm Planetary |
| Rotation Direction | CW (viewed from output shaft) |
| Operating Temp | -10°C ~ +50°C |
| Operating Humidity | 30% ~ 80% |
| Storage Temp | -20°C ~ +60°C |
Applications
-
Robotics
-
Small Appliances
-
Electric Fans & Curtains
-
Medical Pumps & Surgical Tools
-
Medical Stirring Devices & Centrifugal Machines
-
Electric Valves & Actuators
-
Other Industrial & Medical Equipment
What's Included
-

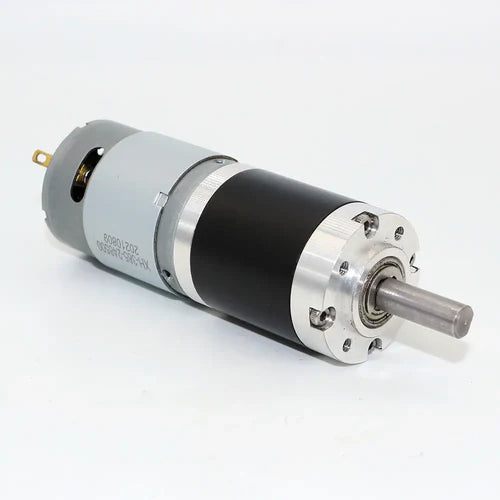

1 × CM28-395 Precision Planetary DC Geared Motor
Why Choose This Motor?
-
High torque output with precise speed control.
-
Efficient and reliable for long-term use.
-
Quiet operation suitable for sensitive environments like medical or laboratory settings.
-
Compact size fits a wide range of robotics and automation projects.
