Product Description

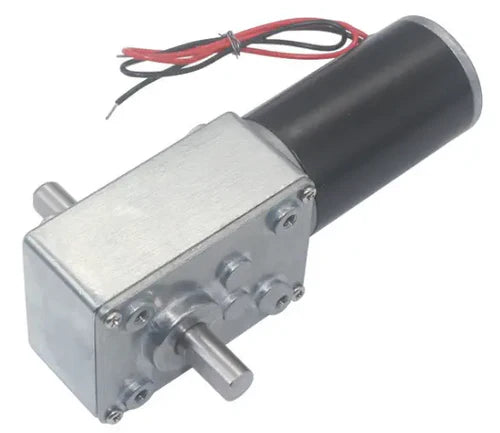

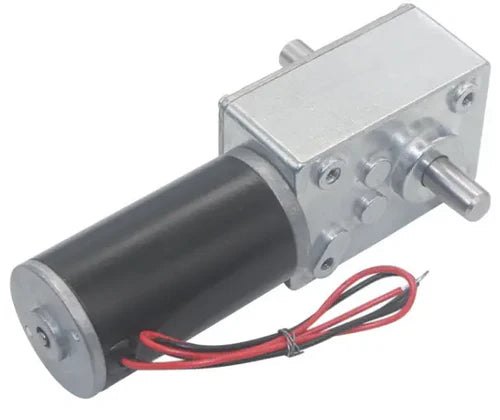

The 24V 12RPM High Torque Dual Shaft 31D Motor with Worm Gear Reduction (Model 5840WG-31ZY) is a precision-engineered DC motor designed for applications requiring high torque, durability, and stability. Featuring a 31mm diameter motor with a worm gear reducer, this motor provides excellent self-locking performance, ensuring that the output shaft maintains its position without external force when power is off.
Its dual output shafts make it versatile for different mechanical designs, while the four integrated M4 screw holes allow for secure and straightforward installation. With RoHS compliance, this motor meets international environmental standards, making it suitable for robotics, automation systems, smart devices, and industrial equipment.
Key Features
-
High Precision & High Torque – Provides stable and powerful output for demanding applications.
-
Self-Locking Worm Gear Design – Prevents back-driving and holds position when powered off.
-
Dual Shaft Output – Enhances flexibility for mechanical coupling and multi-directional drive systems.
-
Compact and Robust Build – 31mm motor body with integrated worm gearbox for space-efficient design.
-
RoHS Compliant – Environmentally friendly and safe for global use.
Specifications
-
Model: 5840WG-31ZY 24V
-
Rated Voltage: 24 V DC
-
No Load Speed: 12 RPM
-
No Load Current: 200 mA
-
Rated Speed: 11.1 RPM
-
Rated Torque: 26.59 Kg.cm
-
Rated Current: 0.61 A
-
Power Output: 3 W
Dimensions
-
Gearbox Size: 58 × 40 mm
-
Motor Size: 31 mm Diameter × 54 mm Length
Applications
This 24V high torque worm gear motor is ideal for:
-
Robotics and automation projects
-
Electric locks and actuators
-
Conveyor and lifting systems
-
Smart home and industrial equipment
-
Applications requiring self-locking and precise positioning
