Product Description:

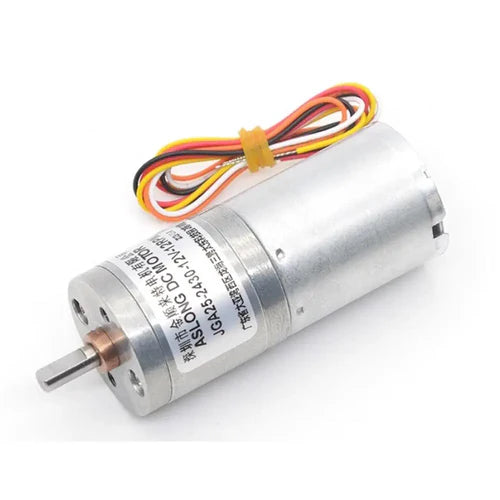

The 25mm 12V 60RPM Brushless DC Gear Motor (JGA25-2430) is a high-performance micro motor designed for precise, reliable, and long-lasting operation in various automation applications. Equipped with a robust all-metal gear system, this motor delivers smooth motion, enhanced wear resistance, and extended lifespan. Ideal for electronic door locks, automatic door systems, intelligent robots, toy cars, and model planes.
Motor Features:
• Low noise, long life, adjustable speed, with brake, with speed feedback signal
• Brushless design controlled by frequency conversion technology for higher energy efficiency than traditional carbon brush motors
• Direction of rotation: CW or CCW, supporting reversed operation
• All-metal gears ensure smooth operation, high wear resistance, and longer motor life

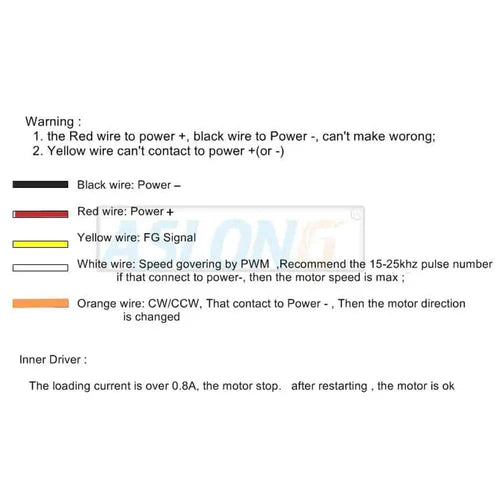

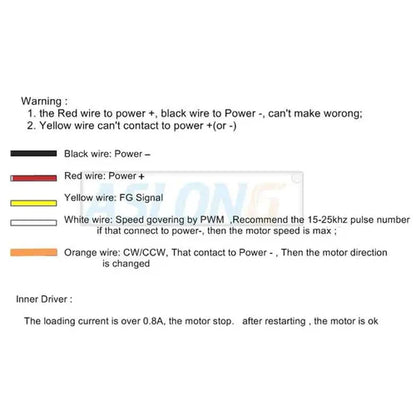

Electrical Specifications:
• Voltage: 12V
• Black wire: Power- for encoder
• Red wire: Power+ for motor
• Yellow wire: Pulse feedback, PPR = 9
• White wire: PWM 15~25kHz pulse width adjustment (if no speed regulation is required, connect black wire to power supply negative to run motor at highest speed)
• Orange wire: CW & CCW direction control
Applications:
• Electronic door locks
• Automatic door systems
• Intelligent robots
• Toy cars
• Model planes
• Suitable for various micro-automation equipment – ensure motor voltage and torque are compatible with your project load before purchase
Package Includes:
• 1 × JGA25-2430 Brushless DC Geared Motor

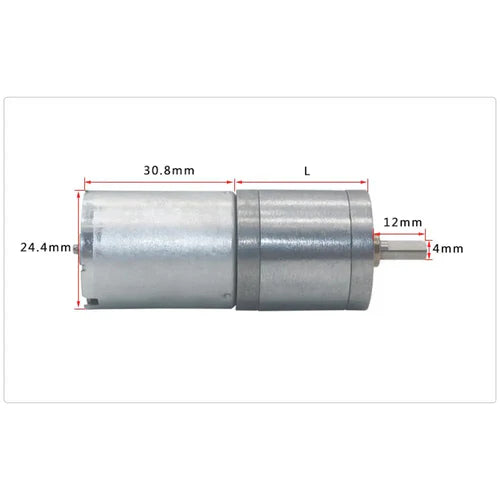

Dimensions:
• Motor size: 25mm × 35mm × 54mm
• Shaft length: 14mm
