Description

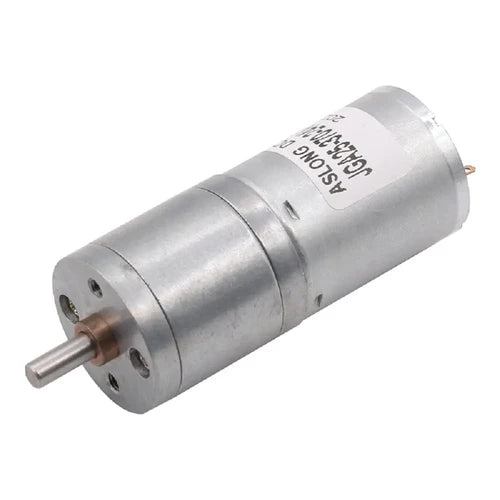

The 25mm Diameter 6V 130RPM 1Kg.cm Brushed DC Gear Motor is a compact and efficient geared motor designed for applications requiring stable torque output, low noise, and high durability. With a 25mm gearbox diameter and 54mm motor body length, this motor offers excellent performance in a wide range of small-scale automation and precision-driven devices.
Built with a metal gearbox, the motor ensures high operating efficiency, low power loss, and minimal noise, making it ideal for sensitive environments such as medical equipment and robotics. The motor runs clockwise when viewed from the output shaft side and is characterized by low current draw and spark-free operation, ensuring long-lasting and reliable performance.
Key Features
-
Gearbox diameter: 25mm
-
Rated voltage: 6V
-
No load speed: 130 RPM
-
High operating efficiency with low noise and power loss
-
Wide gear ratio options: 4.4, 9.6, 16, 21.3, 26, 34, 45, 59, 78, 103, 130, 171, 226, 286, 378, 500
-
Operating temperature range: 10°C to 50°C
-
Operating humidity range: 30% to 85%
-
Storage temperature range: 20°C to 60°C
-
Motor rotation direction: Clockwise (viewed from shaft side)
Specifications
-
Motor Size: 25mm x 25mm x 54mm
-
Motor Diameter: 25mm
-
Motor Body Length: 54mm
-
Output Shaft Diameter: 4mm
-
Output Shaft Length: 11.5mm
-
Maximum Torque: 9 kg/cm
-
Rated Torque: 1 kg/cm
-
Gearbox Diameter: 25mm
Applications
This DC geared motor is widely used in:
-
Robotics and automation projects
-
Small household appliances
-
Fans and electric curtains
-
Medical devices (pumps, stirrers, surgical tools, centrifugal machines)
-
Electric valves and actuators
-
DIY electronics and educational projects
Its compact design, high torque output, and quiet operation make it suitable for both consumer and industrial-grade applications.
Package Includes
-
1 x GA25 370 DC Geared Motor
