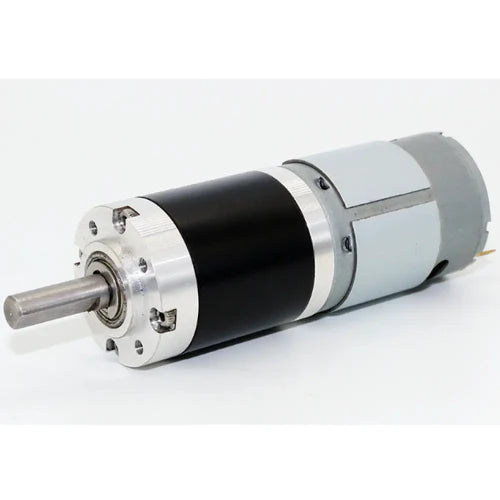

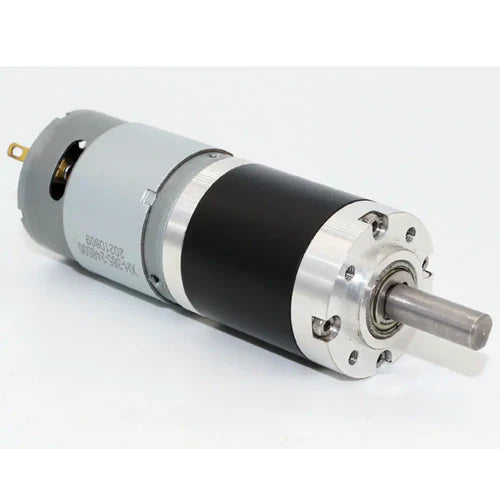

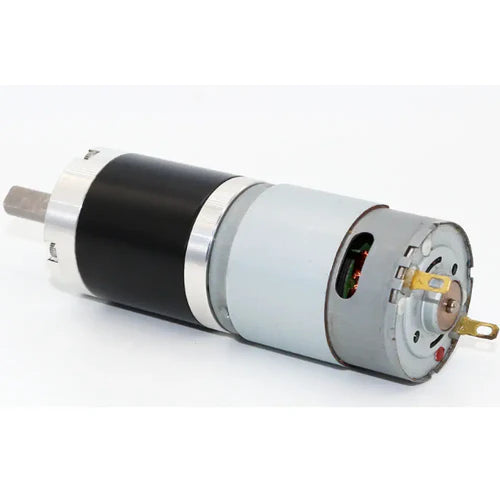

Product Description:
The 28D Planetary Gear Motor is a high-performance brushed permanent magnet DC motor designed for precise, reliable operation in robotics, automation, and industrial applications. Featuring a planetary gearbox with steel final drive stages, this motor ensures durability, high torque, and long service life compared to conventional plastic or sintered metal gears.
Key Features:
-
Motor Type: Brushed permanent magnet DC motor
-
Voltage: 24V DC
-
Variable Speed & Reversible: Easily adjustable for a wide range of applications
-
Gearbox: Planetary design with steel gears for enhanced strength and reliability
-
Dimensions:
-
Gearbox: 28D × 36.4L mm
-
Motor: 29D × 37.5L mm
-
Shaft: 6D × 19.5L mm, D-shaped for secure coupling
-
-
Performance Specifications:
-
Reduction Ratio: 1/99
-
No-load Speed: 80 RPM
-
No-load Current: 0.1 A
-
Rated Torque: 4.73 kg·cm
-
Rated Speed: 71 RPM
-
Rated Current: 0.35 A
-
Power: 3.51 W
-
Stall Torque: 22.8 kg·cm
-
Stall Current: 1.54 A
-
Customization Options:
This motor can be customized to fit specific project needs, including:
-
Shaft dimensions
-
Cable connections and lengths
-
Optional encoders for precise position feedback
-
EMC filters (capacitors or varistors)
For more information on speed options and other specifications, please refer to the attached file or contact us directly.
Applications:
Ideal for robotics, small machinery, automated systems, conveyor belts, and other projects requiring compact, high-torque DC motors with reliable planetary gear performance.
