Product Description

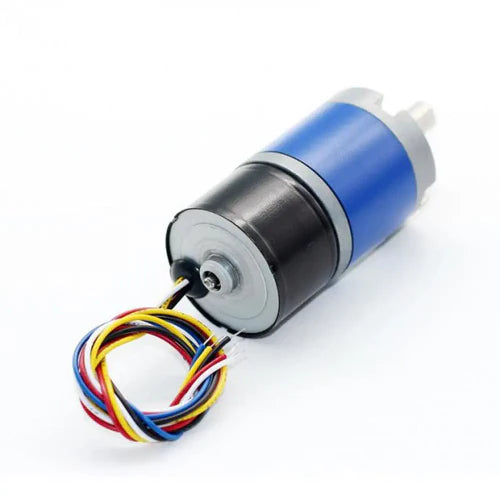

The 36 mm Ø BLDC3625 Brushless DC Planetary Gearbox Motor is designed for high performance and durability in demanding applications. With its compact structure, low noise, and high operating efficiency, this motor is suitable for robotics, automation, medical devices, and various industrial tools. It offers a wide range of gear ratios, ensuring precise control and stable torque output across different operating conditions.
Key Features
• Gearbox Diameter: 36mm
• Rated Voltage: 24V/12V
• High operating efficiency for reliable performance
• Low loss and low noise design for smooth operation
• Direction of Rotation: CW (viewed from output shaft side)
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 30% to 80%
• Storage Temperature: -20°C to +60°C

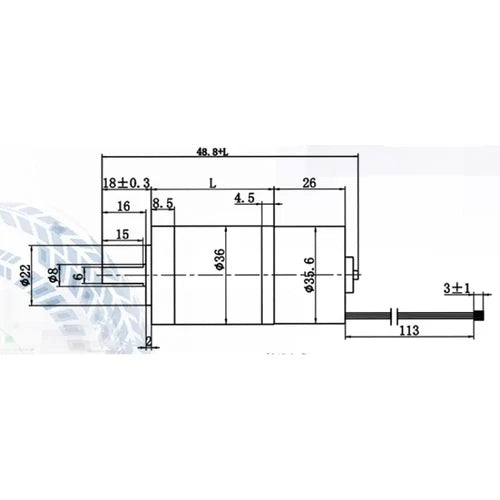

• Compact motor size: 37mm × 33mm × 53mm
• Shaft length: 15mm

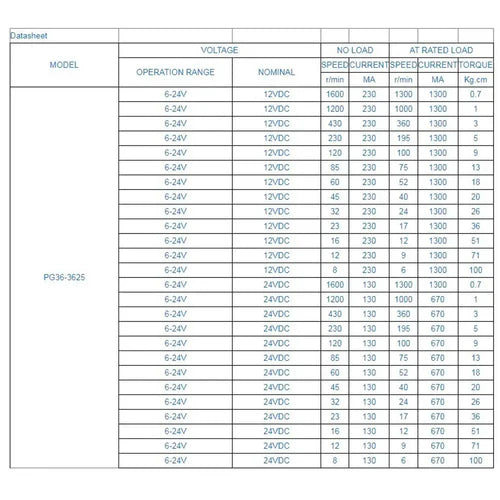

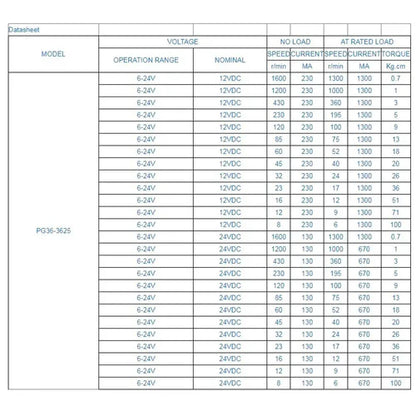

Specifications
• Rated Voltage: 24V
• No Load Speed: 2–1600 RPM (depending on gear ratio)
• Gear Ratios Available: 1:3.7, 1:5.18, 1:14, 1:27, 1:50, 1:71, 1:100, 1:139, 1:189, 1:263, 1:369, 1:516, 1:721
• Measuring Conditions: Motor placed horizontally during testing, regulated DC power supply used
Applications
• Robotics and automation equipment
• Small appliances and fans
• Electric curtains and smart home devices
• Medical pumps, surgical tools, stirrers, and centrifuges
• Electric valves, actuators, and precision medical devices
Package Includes
• 1 × DPG36-3625 Planetary Brushless DC Geared Motor
