Product Description:

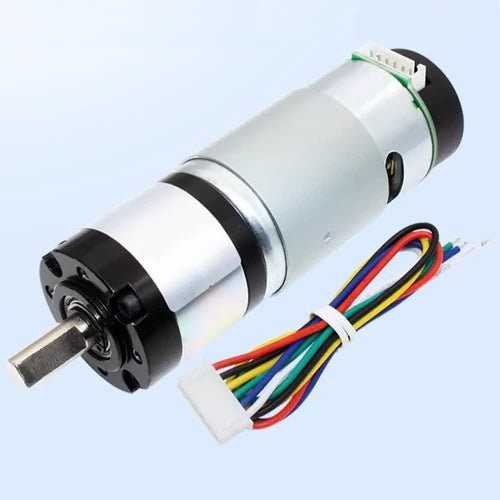

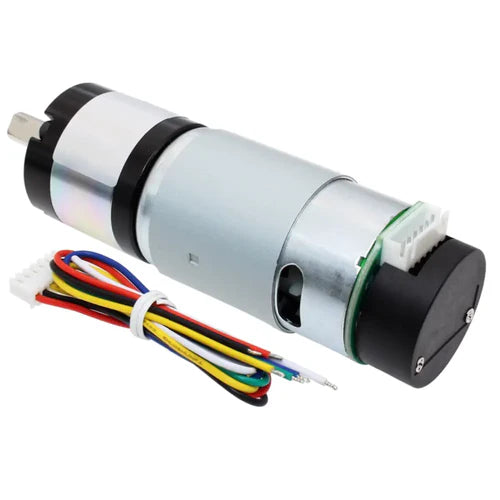

The 36D DC Planetary Gearmotor with Encoder is a high-performance brushed permanent magnet motor designed for large-scale robotics and heavy-duty automation applications. Featuring a 36mm diameter planetary gearbox and a powerful 24V DC motor, this gearmotor delivers reliable torque and precision motion.
Key Features:
-
Brushed Permanent Magnet DC Motor: Offers variable speed and reversible rotation for versatile applications.
-
Massive 36mm Planetary Gearbox: Provides durable mechanical advantage and smooth power transmission.
-
Magnetic Encoder: Dual-channel 12PPR (pulses per revolution) encoder for precise position tracking and feedback control.
-
Ball Bearings: Ensures long-lasting operation and reduced mechanical wear.
-
High Torque and Speed: No-load speed of 230 RPM with a 1:51 gear reduction, rated torque of 35 kg·cm, and stall torque up to 50 kg·cm.
Technical Specifications:
-
Model: 36GP-555PM-51-EN 24V
-
Voltage: 24V DC
-
Gear Reduction Ratio: 1:51
-
No-Load Speed: 230 RPM
-
No-Load Current: 600 mA
-
Rated Speed: 190 RPM
-
Rated Current: 2.7 A
-
Stall Current: <21 A
-
Shaft Dimensions: 8mm diameter, 20mm length, D-shaped
-
Motor Dimensions: 36D x 57L mm
-
Gearbox Dimensions: 36D mm
This robust 36D planetary gearmotor is ideal for robotics, automated machinery, and DIY projects requiring high torque, precision control, and long-lasting reliability. For additional gear ratios, please refer to the attached specification list.
