Product Description:

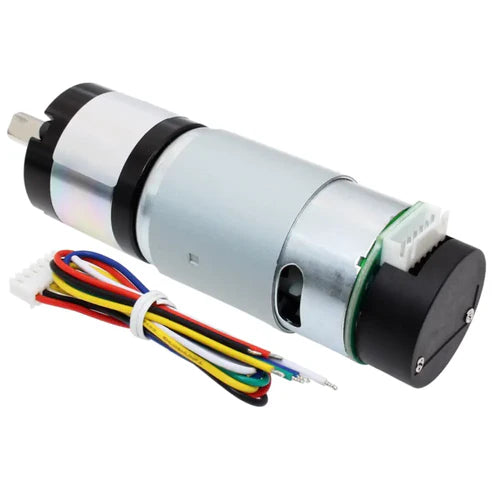

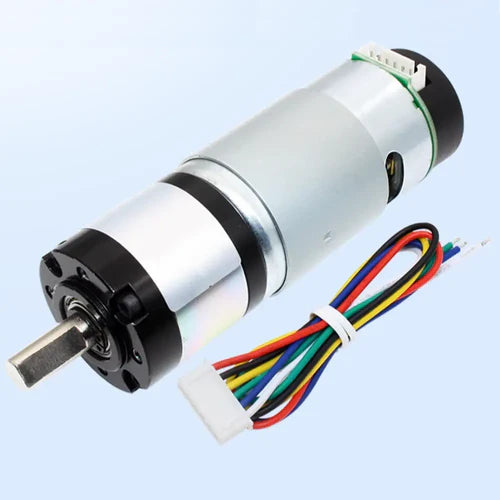

The 36D DC Planetary Gearmotor with Encoder is a heavy-duty brushed permanent magnet motor designed for large-scale robotic applications. Featuring a massive 36mm planetary gearbox and a high-quality magnetic encoder with 2 channels and 12PPR, this motor ensures precise motion control, long-lasting performance, and reliable feedback for your robotics projects.
Built to deliver incredible power, this motor has a no-load speed of 630 RPM with a 1:19 gear reduction, providing smooth and efficient torque output. Its ball-bearing construction guarantees extended lifetime and durability even under continuous operation. The motor is variable speed and reversible, offering flexibility for various applications.
Specifications:
Model: 36GP-555PM-19-EN 24V
Voltage: 24V DC
Gear Reduction Ratio: 1:19
No-load Speed: 630 RPM
No-load Current: 600 mA
Rated Speed: 500 RPM
Rated Torque: 15 kg.cm
Rated Current: 2.7 A
Stall Torque: 30 kg.cm
Stall Current: < 21 A
Dimensions:
Gearbox: 36D
Motor: 36D x 57L mm
Shaft: 8D x 20L mm, D-shaped
This 36D planetary gearmotor is ideal for large-scale robots, automated machinery, and high-torque applications. For alternative gear ratios and specifications, please refer to the attached file list.
