Product Description

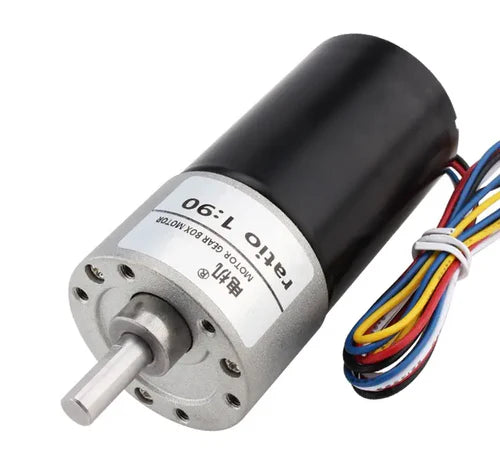

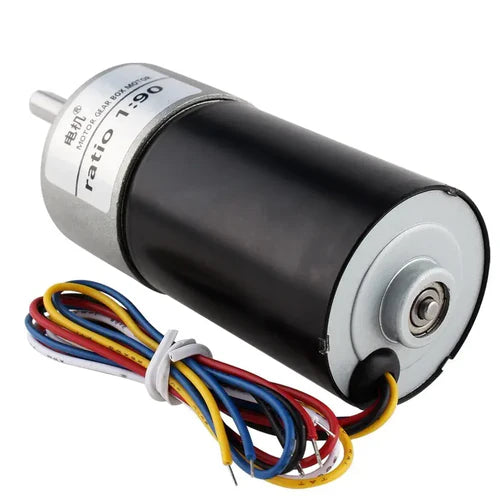

The 36D Long Life Brushless DC Geared Motor (Model: 37SG-3650BL-150 24V) is a high-performance motor designed for durability, quiet operation, and versatile applications. Equipped with a built-in driver and integrated electronics, this BLDC gear motor provides step-less speed control, bi-directional rotation, and PWM speed regulation. Its speed signal feedback system delivers six pulses per revolution, enabling precise monitoring and control.
Engineered with an inner rotor design, this motor achieves exceptionally low noise levels, long operating life, and high efficiency, making it suitable for continuous-duty applications. The combination of a compact 37D gearbox and a 36D motor body ensures excellent torque output while maintaining space efficiency.
Key Features
-
Built-in driver for easy integration
-
Bi-directional operation with PWM speed control
-
Speed signal feedback: 6 pulses per revolution
-
Exceptionally low noise, long-life operation
-
Compact yet powerful geared motor design
-
High efficiency and reliable performance
Applications
This BLDC gear motor is ideal for a wide range of applications requiring low voltage, quiet operation, and high reliability, including:
-
Peristaltic pumps
-
HVAC systems and valve actuation
-
Animated and point-of-sale displays
-
Restaurant and catering equipment
-
Scientific and medical devices
Specifications
-
Model: 37SG-3650BL-150 24V
-
Voltage: 24V DC
-
Reduction Ratio: 1:150
-
No-load Speed: 55 RPM
-
No-load Current: < 320 mA
-
Rated Torque: 35 kg.cm
-
Rated Speed: 45 RPM
-
Rated Current: < 1.1 A
Dimensions
-
Gearbox: 37D × 26.5L mm
-
Motor: 36D × 50L mm
-
Shaft: 6D × 21L mm, D-shaped
