Product Description:

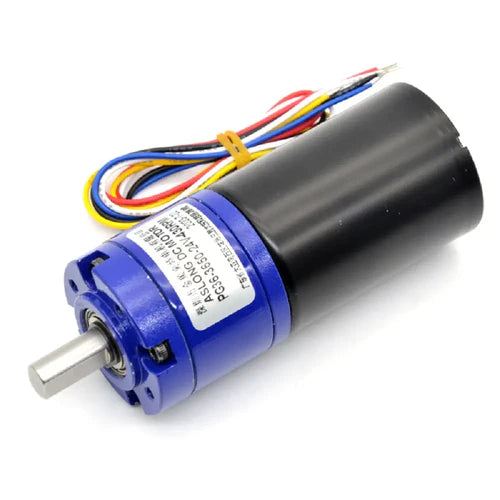

The 36mm 12V 1600RPM High Quality Micro 3650 Brushless DC Planetary Gear Motor delivers high efficiency, low noise, and exceptional reliability, making it ideal for precision instruments, robotics, and small appliances. Its neodymium iron boron magnetic core and pure copper coil ensure stable performance, while the planetary gearbox provides multiple reduction ratios for versatile applications. Designed for both 12V and 24V operation, this motor features low current consumption, minimal spark, and quiet operation, suitable for sensitive environments.
Key Features:
• Neodymium iron boron magnetic core and pure copper coil for high efficiency and durability
• Rated voltage: 12V DC (also supports 24V operation)
• Low loss, low noise, and low current design
• Clockwise rotation when viewed from the output shaft side
• Operating temperature range: 10°C to 50°C; humidity range: 30% to 80%
• Storage temperature range: -20°C to 60°C
• Suitable for robotics, automatic curtains, fans, small appliances, medical pumps, surgical tools, electric valves, actuators, and other precision devices
• Multiple reduction ratios: 1:3.7, 1:5.18, 1:14, 1:27, 1:50, 1:71, 1:100, 1:139, 1:189, 1:263, 1:369, 1:516, 1:721
Specifications:
• Model: PG36 3650 12 1600
• Voltage: 12V DC
• Reduction Ratio: 1:3.7 (various options available)
• No-load Speed: 1600 RPM
• No-load Current: 230 mA
• Rated Torque: 0.7 kg.cm
• Rated Speed: 1300 RPM
• Rated Current: 1300 mA
• Stall Torque: 3.2 kg.cm
• Stall Current: 4 A
• Shaft Length: 14 mm
• Motor Dimensions: 85 mm x 48 mm x 40 mm
Package Includes:
• 1x PG36 3650 Planetary Gear Motor
Applications:
Perfect for robotics, precision instruments, electric curtains, medical devices, fans, actuators, and small machinery requiring reliable, quiet, and efficient motion control.
