Description:

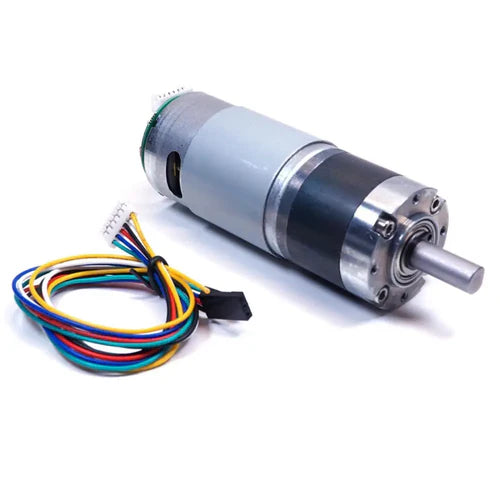

Upgrade your robotics and automation projects with the 36mm 12V 170RPM Brushed DC Gear Motor with Encoder (1:51). Designed for precision and durability, this compact motor combines high torque performance with accurate speed control, thanks to its integrated encoder and metal planetary gears.
-
High Performance: Offers a no-load speed of 170 RPM (±10%) and a torque of 11.5 kg.cm, making it ideal for small robots, automation systems, and DIY projects.
-
Durable Gear System: Equipped with metal planetary gears, ensuring long-lasting performance and reliable operation under load.
-

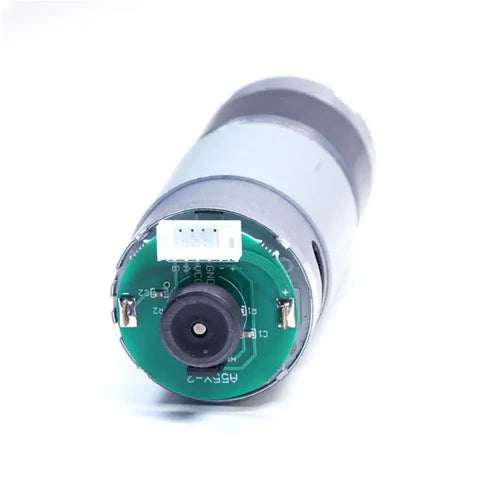

Integrated Encoder: Built-in encoder with 12 PPR pulse and AB 90° square wave signal, providing precise feedback for speed and position control.
-
Electrical Specifications: Operates at 12 VDC, with a current draw of ≤3 A under normal load and stall torque of 78 kg.cm at ≤20 A.
-
Compact Design: Features a 36mm diameter with an 8mm D-shape output shaft, allowing easy integration into various mechanical setups.
Specifications:
-
Motor:
-
Operating Voltage: 12 VDC
-
Gear Ratio: 51:1
-
No-Load Speed: 170 RPM (±10%)
-
Loaded Speed: 145 RPM (±10%)
-
Torque: 11.5 kg.cm
-
Stall Torque: 78 kg.cm
-
Current: ≤3 A (operating), ≤20 A (stall)
-
Output Shaft: 8 mm D-shape
-
Gears: Metal planetary
-
-
Encoder:
-
Operating Voltage: 5 V
-
Signal Type: Square wave AB 90°
-
Pulse: 12 PPR
-
Max Frequency: 800 kHz
-
Package Includes:
1 × 36mm 12V 170RPM Brushed DC Gear Motor with Encoder (1:51)
Perfect for hobbyists, engineers, and educators looking for a reliable, high-torque motor with precise encoder feedback for robotics, automation, and small machinery applications.
