Description

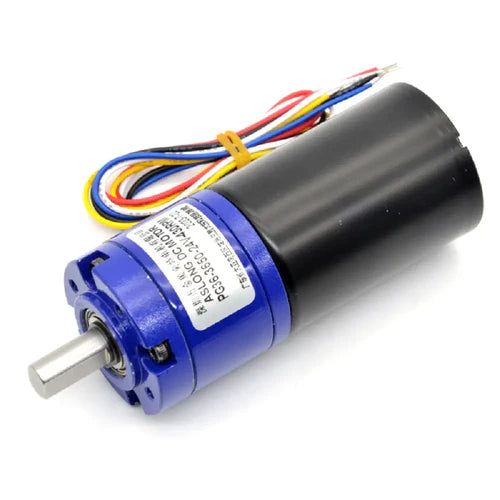

The 36mm 12V 230RPM High Quality Micro 3650 Brushless DC Planetary Gear Motor combines compact design with high performance, offering exceptional efficiency and durability. Built with a neodymium iron boron magnetic core and pure copper coil, this motor ensures powerful torque, stable operation, and minimal maintenance. Its planetary gearbox design provides smooth transmission, high torque density, and excellent precision — making it ideal for automation, robotics, and precision control systems.
Engineered for reliability, it features low loss, low noise, and spark-free operation, ensuring consistent performance in demanding applications such as medical equipment, small appliances, electric valves, and robotics. Available in 12V and 24V variants, the motor offers multiple gear ratio options to suit diverse speed and torque requirements.
Key Features
-
High-quality Neodymium Iron Boron magnetic core and pure copper winding for superior efficiency
-
Low noise, low current, and no spark operation for long service life
-
High torque and precision due to planetary gearbox structure
-
Multiple gear ratio options for versatile applications
-
Wide voltage compatibility (12V / 24V) for flexible integration
-
Suitable for robotics, automation, and medical devices
Applications
Robotics | Automation Systems | Electric Valves | Medical Pumps | Precision Instruments | Electric Curtains | Smart Home Devices | Small Machinery | Centrifugal Tools | Actuators
What’s Included
• 1 × PG36 3650 Planetary Gear Motor
Specifications
| Parameter | Specification |
|---|---|
| Model | PG36 3650 12 230 |
| Voltage | 12V DC |
| Reduction Ratio | 1:27 |
| No-load Speed | 195 RPM |
| No-load Current | 230 mA |
| Rated Torque | 5 kg·cm |
| Rated Speed | 195 RPM |
| Rated Current | 1300 mA |
| Stall Torque | 20.7 kg·cm |
| Stall Current | 4 A |
| Gear Ratio Options | 1:3.7, 1:5.18, 1:14, 1:27, 1:50, 1:71, 1:100, 1:139, 1:189, 1:263, 1:369, 1:516, 1:721 |
| Motor Size | 85 mm × 48 mm × 40 mm |
| Shaft Length | 14 mm |
| Rotation Direction | Clockwise (viewed from output shaft) |
| Operating Temp / Humidity | 10°C–50°C / 30%–80% RH |
| Storage Temperature | 20°C–60°C |
| No-load Speed (Motor only) | 1600 RPM |
| Measurement Condition | Horizontal placement, regulated DC power supply |
