Key Features
-
Integrated Driver – Built-in BLDC driver, no need for an external controller
-
Durable Design – Permanent grease lubrication for long-lasting performance
-
High Reliability – Double ball bearing output shaft for stability and load capacity
-
Ultra-Quiet Operation – Low noise, smooth performance with long service life
-
Extended Lifetime – Over 15,000 hours of operation under rated conditions
-
Compact & Powerful – Small 36mm form factor with high torque at low speeds
Product Description

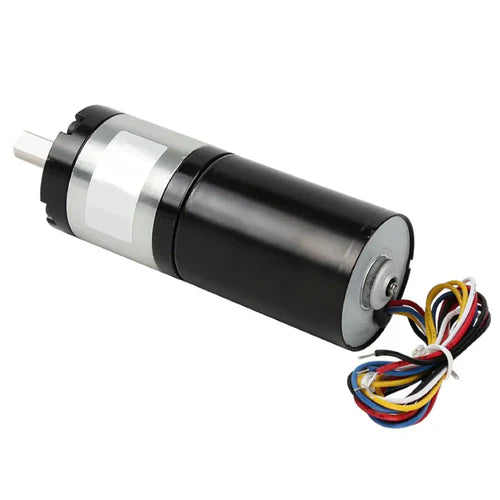

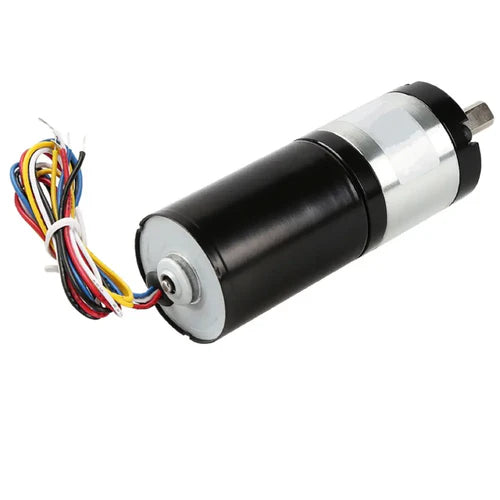

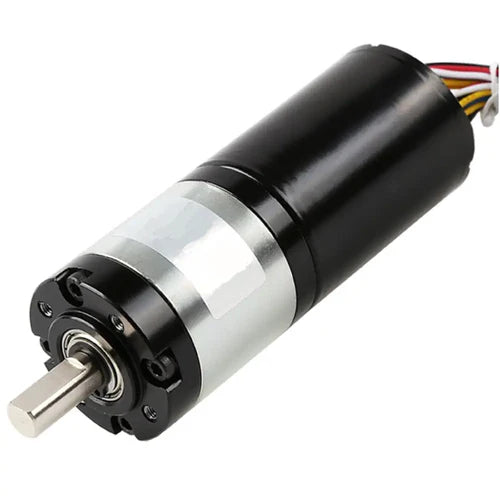

The 36mm Brushless DC Planetary Gear Motor, 24V, 300 RPM is engineered for applications requiring high torque, compact size, and quiet operation. Equipped with an integrated BLDC driver, it simplifies system design and reduces costs by eliminating the need for an additional controller.
Its planetary gearbox ensures efficient torque transmission and stability, while double ball bearings on the output shaft provide durability under load. With permanent grease lubrication, this gear motor ensures long-term operation with minimal maintenance.
Ideal for robotics, automation equipment, industrial machinery, and precision devices, this gear motor combines efficiency, reliability, and long life in one compact solution.
Dimensions
Gearbox: 36 mm diameter × 34.5 mm length
Motor: 35.8 mm diameter × 50 mm length
Shaft: 8 mm diameter × 20 mm length, D-shaped
Specifications
Model: 36PG 3650BL 27 24V
Voltage: 24V DC
Reduction Ratio: 1/27
No Load Speed: 300 RPM
No Load Current: < 400 mA
Rated Torque: 16 kg.cm
Rated Speed: 130 RPM
Rated Current: < 2.6 A
Lifetime: > 15,000 hours
For further speed specifications, please refer to the attached file list
