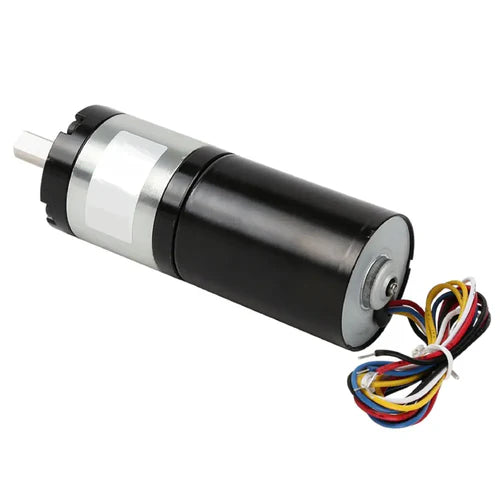

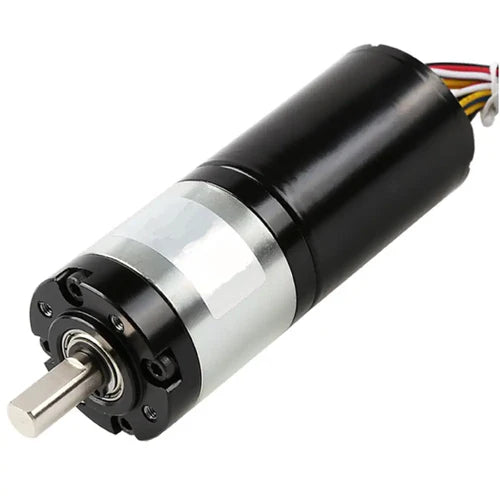

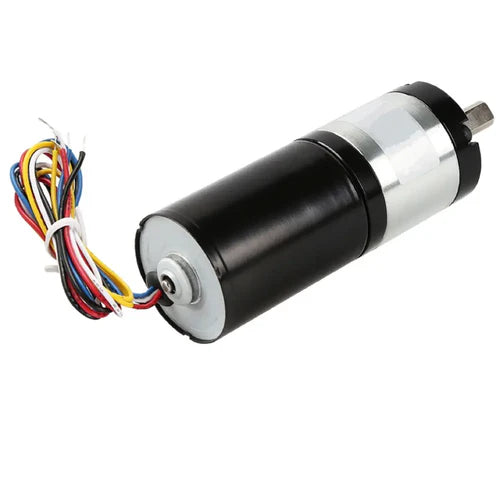

The 36mm Brushless DC Planetary & Precision Gear Motor (12V 80 RPM) combines a high-performance brushless DC motor with a precision planetary gearbox, delivering compact, efficient, and durable operation. Designed for applications demanding smooth motion, low noise, and high torque, this motor integrates an advanced driver, eliminating the need for an additional controller.
Key Features:
-
Integrated Brushless DC Motor Driver: Simplifies installation by removing the need for an external driver or controller.
-
Durable Planetary Gearbox: Entirely metal gears with permanent grease lubrication ensure extended service life and reliable torque transmission.
-
Precision Bearings: Double ball bearings on the output shaft enhance stability and longevity.
-
Quiet Operation: Low-noise design supports lifetimes exceeding 15,000 hours.
-
Compact Dimensions: Small form factor enables seamless integration into space-constrained designs.
Specifications:
-
Model: 36PG 3650BL 51 12V
-
Voltage: 12V DC
-
Gear Reduction Ratio: 1:51
-
No-load Speed: 80 RPM
-
No-load Current: < 280 mA
-
Rated Torque: 15 kg·cm
-
Rated Speed: 40 RPM
-
Rated Current: < 1.8 A
-
Shaft: 8 mm D-shaped × 20 mm length
-
Gearbox Dimensions: 36 mm diameter × 42.5 mm length
-
Motor Dimensions: 35.8 mm diameter × 50 mm length
Advantages:
This motor delivers peak efficiency at traditional motor speeds, offering higher torque output, enhanced reliability, and cost-effective performance. Its planetary gear design ensures smooth, precise, and powerful motion in a compact package, making it ideal for robotics, automation, and precision machinery applications.
