Product Description

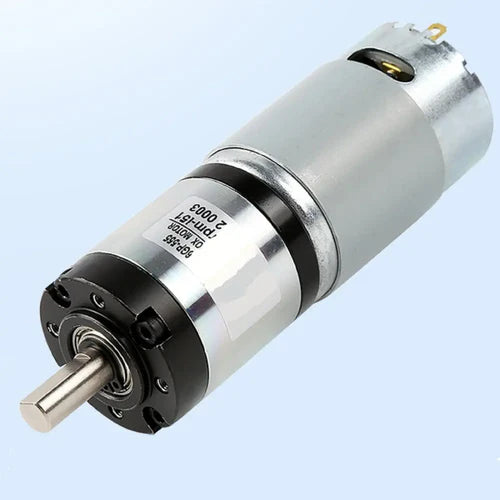

The 36mm Diameter High Torque Planetary Gear Motor, 24V, 120RPM is a compact and reliable DC motor combined with a precision-engineered planetary gearbox. Designed for applications requiring low speed and high torque, this motor is ideal for robotics, automation systems, special effects, and machinery drive projects.
Featuring a 36mm gearbox diameter and a long 8mm D-shaped output shaft, this motor allows easy mounting of wheels, pulleys, sprockets, and other mechanical components. The motor is built with durable carbon brushes for enhanced lifespan and efficiency, making it a cost-effective replacement for worn or damaged DC motors in a wide range of machines.
This planetary gear motor is highly versatile, operating smoothly across a 6V to 30V DC range, with optimal performance at 12V or 24V DC. At 24V, it delivers a rated torque of 50 kg.cm with a stall torque of up to 60 kg.cm, making it suitable for driving loads between 3 kg and 60 kg in robotic systems.

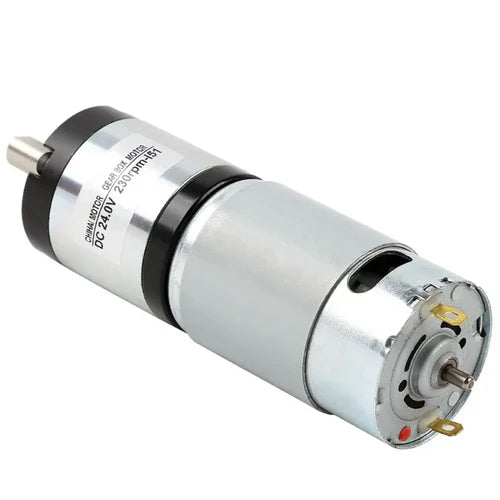

The motor body includes two copper tabs for easy wire soldering or crimping, and an optional 500mm silicone-insulated lead set can be pre-installed upon request (additional processing time applies).
Whether for robotics hobbyists, automation engineers, or special effects designers, this compact motor offers a perfect balance of power, precision, and durability.
Dimensions
-
Gearbox: 36 mm diameter × 42.5 mm length
-
Motor: 35.8 mm diameter × 57 mm length
-
Shaft: 8 mm diameter × 20 mm length, D-shaped
Specifications
-
Model: 36PG 555K 24120 100 24V
-
Gear Ratio: 1/100
-
Rated Voltage: 24V DC
-
No Load Speed: 120 RPM
-
No Load Current: < 500 mA
-
Rated Speed: 90 RPM
-
Rated Current: < 2.6 A
-
Rated Torque: 50 kg.cm
-
Stall Torque: 60 kg.cm
-
Stall Current: < 21 A
Key Features
-
Compact DC motor and planetary gearbox combination
-
36mm diameter gearbox with high torque output
-
Carbon brushes for improved durability and performance
-
Long 8mm D-shaped output shaft for easy mounting
-
Wide 6V–30V DC operating range
-
Compatible with various planetary geared motor systems
-
Ideal for robotics, automation, and machine drive replacements
