Product Description:
The 37D 24V 7RPM 3625 Brushless DC Gearmotor is a high-performance, durable motor designed for robotics, automation, and precision applications. Featuring a compact design, low noise operation, and high efficiency, this gearmotor delivers reliable performance across a wide range of uses.
Key Features:
-
Rated Voltage: 24V DC
-
No-load Speed: 7RPM (other speed options available: 12rpm, 22rpm, 35rpm, 45rpm, 66rpm, 107rpm, 200rpm, 320rpm, 600rpm, 960rpm)
-
Max Torque: 40 kg·cm
-
Max Power: 0–5W
-
Gearbox Diameter: 37mm
-
Motor Diameter: 33mm
-
Motor Body Length: 30mm
-
Output Shaft Diameter: 6mm
-
Output Shaft Length: 15mm
-
Gear Material: Metal gears for extended motor lifespan
-
Operating Conditions: Temperature -10°C to +50°C, Humidity 30%–80%
-
Rotation Direction: CW or CCW, reversible support
-
Adjustable Speed: Compatible with a speed controller for precise control
-
Low Noise & Low Loss: Ensures smooth operation and energy efficiency

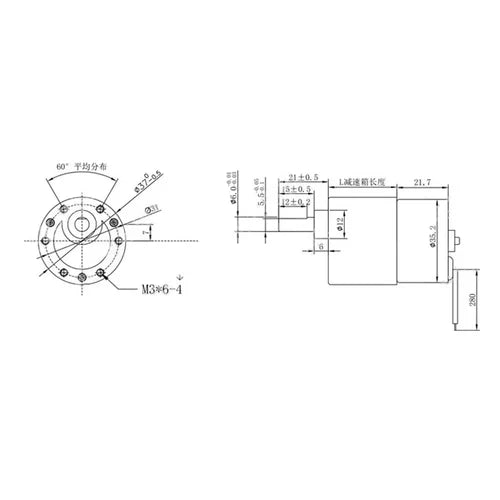

Dimensions:
-
Motor Size: 37mm × 33mm × 53mm
-
Shaft Length: 15mm
What’s Included:
-
1 × DGB37-3625 Brushless DC Gearmotor
Description:
This 37D brushless DC motor combines a powerful 24V system with a robust metal gear set to provide long-lasting, high-efficiency operation. Its compact design makes it ideal for robotic arms, automated systems, and other mechanical projects. The motor supports both clockwise and counterclockwise rotation and can be easily integrated with speed controllers to fine-tune performance. Standard operating noise ensures quiet functionality, making it suitable for professional and hobbyist applications alike.
