Product Description

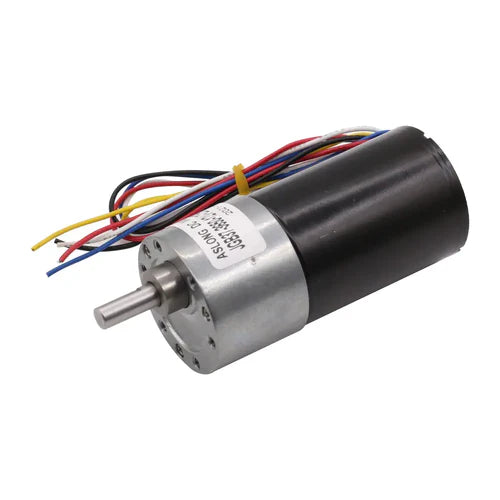

The 37mm Diameter, 12V, 133RPM Brushless DC Geared Motor is a high-performance motor designed for robotics, automation, and precision machinery. With its durable all-metal gearbox, low noise output, and high operating efficiency, this motor provides reliable power and stable performance. The compact size and versatile control features make it suitable for a wide range of engineering applications.
Key Features
• Gearbox diameter: 37mm
• Rated voltage: 12V (optional 24V available)
• High operating efficiency for long-term use
• Low power loss and reduced operating noise
• Wide operating temperature range: 10°C to 50°C
• Operating humidity range: 30% to 80%
• Metal gear construction for enhanced durability
• Adjustable speed using PWM speed controller
• Supports both clockwise (CW) and counterclockwise (CCW) rotation
Technical Specifications
• Voltage options: DC12V, DC24V
• No-load speed (12V): 5RPM, 8RPM, 15RPM, 23RPM, 36RPM, 44RPM, 71RPM, 133RPM, 212RPM, 400RPM, 634RPM
• No-load speed (24V): 10RPM, 16RPM, 29RPM, 47RPM, 61RPM, 88RPM, 142RPM, 266RPM, 425RPM, 800RPM, 1270RPM
• Speed error: ±5%
• Maximum torque: 35kg.cm
• Output shaft: 6mm D-type, 14mm length
• Motor dimensions: 37mm x 33mm x 53mm
• Shaft length: 15mm
• Noise level: standard low operating noise

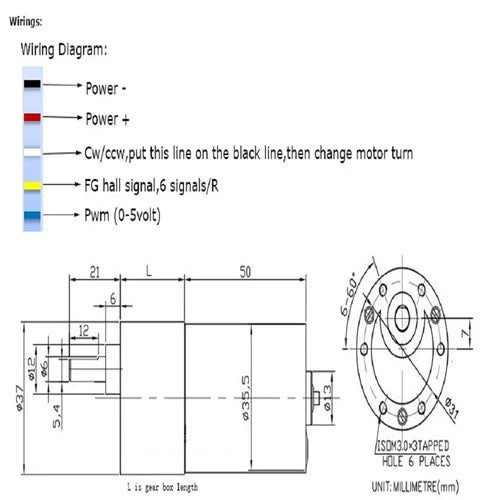

Wire Connection Method
• Red wire: Power +
• Black wire: Power –
• White wire: CW/CCW control (connect white to black to reverse rotation)
• Blue wire: PWM speed control (0-6V pulse width governor)
• Yellow wire: FG signal output
What’s Included
• 1x GB37 3650 Brushless DC Geared Motor
