Product Description:
The 37mm Diameter, 24V, 200RPM Brushed DC Gear Motor w/ Encoder delivers reliable performance with high efficiency, low noise, and minimal power loss, making it ideal for robotics, small appliances, fans, electric curtains, medical pumps, surgical tools, medical stirrers, centrifugal machines, electric valves, actuators, and other precision devices. This motor is designed for low current consumption, spark-free operation, and consistent rotational accuracy.
Key Features:
• Gearbox diameter: 37mm
• Rated voltage: 24V
• High operating efficiency and low energy loss
• Low noise operation
• Operating temperature: 10°C to 50°C, humidity: 30% to 80%
• Suitable for clockwise rotation when viewed from the output shaft side
• No-load speed: 7960 RPM
• Multiple gear ratios available: 1:6.25, 1:10, 1:18.8, 1:30, 1:56, 1:90, 1:131, 1:68, 1:210, 1:270, 1:506, 1:810
• Spark-free brushed DC motor design for enhanced safety and reliability
Specifications:
• Max Power: 10 W
• Max Torque: 25 kg/cm
• Motor Diameter: 33 mm
• Motor Body Length: 22.7 mm
• Gearbox Diameter: 37 mm
• Output Shaft Diameter: 6 mm
• Output Shaft Length: 15 mm
• Overall Motor Size: 37 mm x 33 mm x 53 mm
What’s Included:

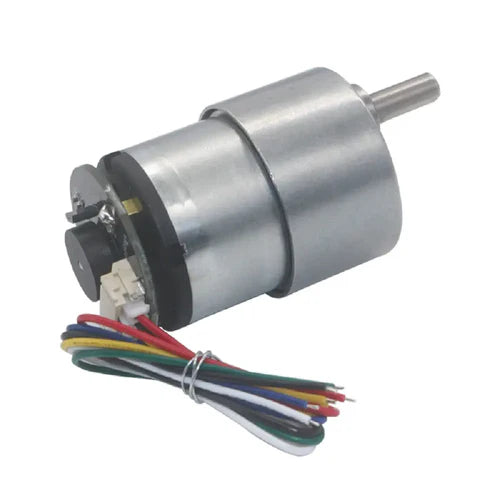

• 1x GB37 520B DC Geared Motor with Encoder
Applications:
Perfect for robotics, electric curtains, medical devices, fans, actuators, and precision machinery requiring reliable torque and compact design.
