Product Description:

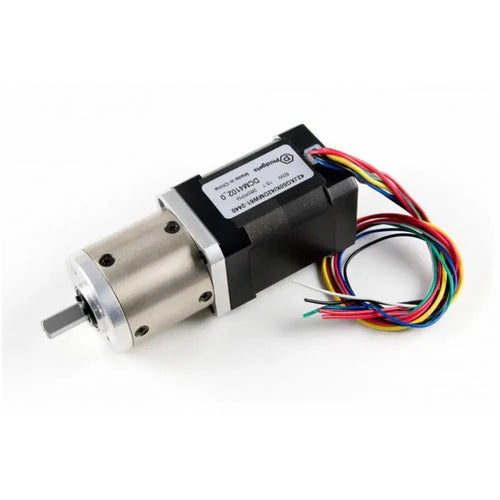

The 42DMW61 NEMA17 Brushless Motor w/ 15:1 Gearbox is a high-performance 24V brushless DC motor designed for precision applications. It delivers 15 kg-cm of torque at 260 RPM and includes a 5-Pin Molex connector for quick and easy integration. Equipped with a built-in hall-effect sensor, this motor provides reliable position and velocity control while operating quieter and lasting longer than brushed motors. Its 15:1 planetary gearbox increases torque output while maintaining smooth performance, making it ideal for robotics, automation, and other high-precision projects.
Key Features:
• Brushless DC motor design for high efficiency and long lifespan
• 15 kg-cm torque at 260 RPM for powerful and consistent performance
• 24V operating voltage with 3.5 A rated current
• Built-in hall-effect sensor for position and velocity control
• 5-Pin Molex connector with pre-soldered ferrules for easy installation
• 15:1 planetary gearbox for higher torque output
• Shaft diameter: 8 mm, Mounting plate size: NEMA17
• Operating temperature range: -20 °C to 40 °C
Specifications:
Motor: Motor Type: Brushless DC Motor • Number of Poles: 8 • Manufacturer Part Number: 42JXG50K(15)/42DMW61-2440 • Output Power (Mechanical): 50 W • Rated Torque: 15.3 kg.cm • Rated Speed: 260 RPM
Electrical: Rated Current: 3.5 A • Rated Voltage: 24 V DC • Coil Resistance: 740 mΩ
Physical: Mounting Plate Size: 17 • Operating Temperature Min: -20 °C • Operating Temperature Max: 40 °C
Gearbox: Gearbox Type: Planetary Gearbox • Gear Ratio: 14 70/121 : 1
What’s Included:
• 1x 42DMW61 NEMA17 Brushless Motor w/ 15:1 Gearbox
