Description:

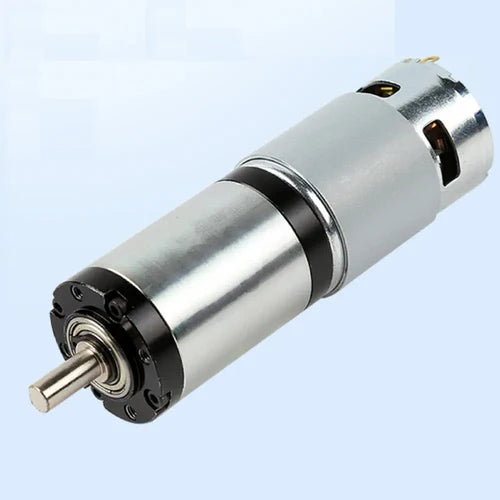

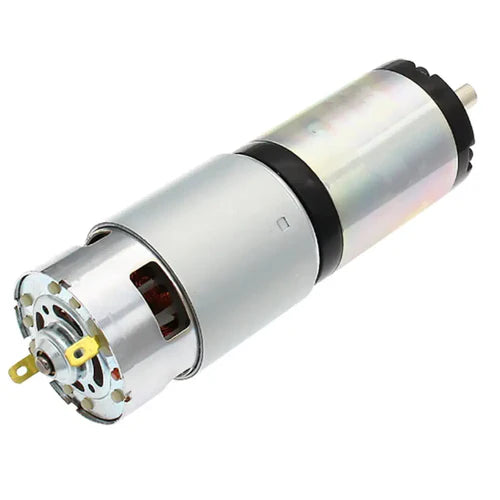

The 42mm DC Planetary Gear Motor, 12V, 1100 RPM from E S MOTOR delivers exceptional torque and efficiency in a compact, inline design. Engineered for precision and performance, this planetary gear motor is ideal for applications requiring high torque at low speeds with minimal backlash.
Key Features:
-
High Torque Performance: Provides excellent torque output compared to conventional gear motors, suitable for handling varying loads.
-
Compact Inline Design: Sleek and space-efficient, perfect for tight installations.
-
High Efficiency & Power Density: Optimized for minimal energy loss while delivering maximum output.
-
Versatile Reduction Ratios: Capable of handling large reduction ratios, allowing customization for your specific application.
-
Reliable Operation: Best suited for intermittent duty with consistent performance over time.
Specifications:
-
Model: 42PG 775 3.7 12V
-
Voltage: 12V DC
-
Gear Ratio: 1/3.7
-
No Load Speed: 1100 RPM
-
No Load Current: < 500 mA
-
Rated Speed: 550 RPM
-
Rated Current: < 6 A
-
Rated Torque: 5.5 Kg.cm
-
Stall Current: 12 A
Dimensions:
-
Motor: 42 mm diameter × 66.5 mm length
-
Gearbox: 42 mm diameter × 33.5 mm length
-
Shaft: 8 mm diameter × 22 mm length, D-shaped
E S MOTOR’s planetary gear motors are available in multiple voltages, sizes, and reduction ratios, offering a fully tailored solution for your industrial, robotic, or automation projects.
