Product Description:

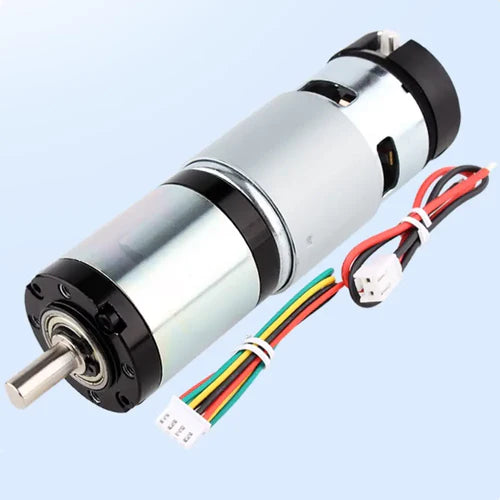

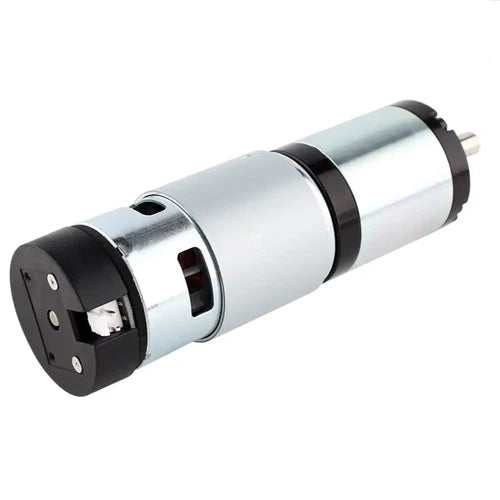

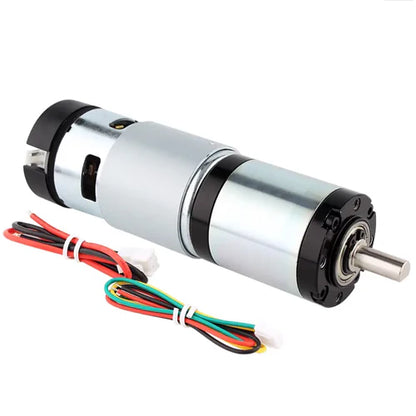

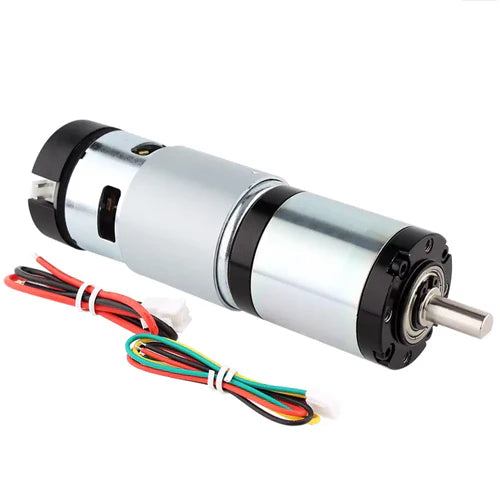

Upgrade your robotic projects with the 42mm High Torque Planetary Gear Motor with Encoder. Designed for heavy-duty applications, this robust brushed DC motor delivers exceptional power and precision, making it ideal for large-scale robots, automation systems, and industrial mechanisms.
Featuring a massive 42mm planetary gearbox, this motor provides a 1:49 reduction ratio, delivering a rated speed of 165 RPM and rated torque up to 40 kg·cm. Its variable speed and reversible operation allow precise motion control for demanding tasks.
The motor includes a 2-channel magnetic encoder with 15 PPR, offering accurate feedback for position and speed monitoring. Rated specifications ensure peak efficiency, while the motor can safely handle currents beyond these values when needed.
Key Specifications:
-
Model: 42PG-775-49-EN 24V
-
Voltage: 24V DC
-
Reduction Ratio: 1/49
-
No-load Speed: 165 RPM
-
No-load Current: < 700 mA
-
Rated Speed: 130 RPM
-
Rated Torque: 40 kg·cm
-
Rated Current: < 7 A
-
Stall Current: 24.5 A
-
Gearbox Dimensions: 42D × 53.5L mm
-
Motor Dimensions: 42D × 66.5L mm
-
Shaft: 8D × 22L mm, D-shaped
Built to deliver incredible power and reliability, this motor is perfect for large robotic platforms and precision automation. With high torque, durable construction, and integrated encoder feedback, it ensures precise, smooth, and controlled motion under heavy loads.
