Product Description:

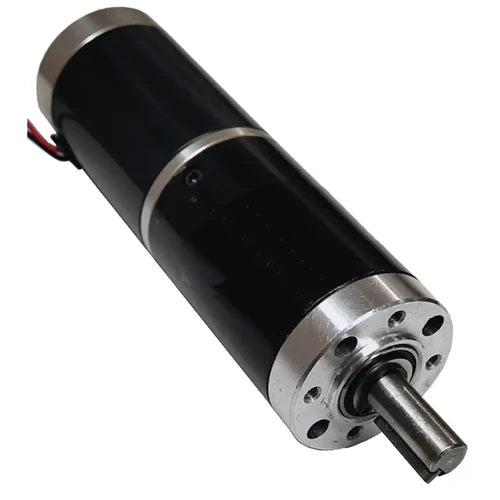

The 45D High Torque DC Planetary Gear Motor for Robot Parts (24V, 8RPM) is a precision-engineered motor built for reliability, durability, and high performance in robotic and industrial applications. Featuring hardened pinion gears and a plated output shaft with anti-rust coating, this motor ensures long-lasting operation even under continuous duty cycles. Its ball-bearing design supports high-use scenarios and delivers exceptional torque with minimal noise.
Designed for flexibility, the motor is clockwise/counterclockwise reversible and available in assorted gear ratios to suit various robotic mechanisms. With a robust 45 mm diameter motor and planetary gearbox, it provides both compact form and high output, making it ideal for automation, robotics, and high-torque industrial systems.
This motor guarantees years of reliable, trouble-free service, delivering up to 14 N·m rated torque and a peak torque of 30 N·m, ensuring consistent performance under demanding loads. Its quiet operation and durability make it a cost-effective solution for high-volume industrial applications.
Key Features:
-
Hardened pinion gears for maximum durability
-
Plated output shaft with anti-rust coating
-
Ball-bearing supported for high-use, high-torque applications
-
Continuous duty cycle for prolonged operation
-
Clockwise/counterclockwise reversible
-
Quiet and robust performance for industrial use
Dimensions:
-
Motor: 45 mm diameter × 74 mm length
-
Gearbox: 45 mm diameter × 68.7 mm length
-
Shaft: 10 mm diameter × 27 mm length, keyway shaft
Specifications:
| Model | 45PG 45ZY 516 |
|---|---|
| Voltage | 24V |
| Gear Ratio | 516 |
| No-Load Speed | 8 RPM |
| Rated Speed | 6.2 RPM |
| Rated Torque | 14 N·m |
| Maximum Torque | 30 N·m |
