Description

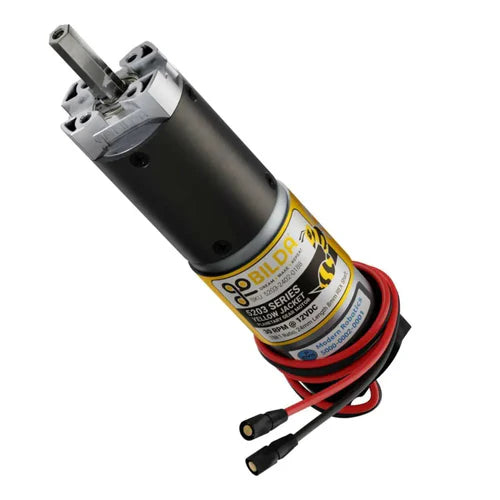

The 5203 Series Yellow Jacket Planetary Gear Motor (188:1, 30 RPM, 3.3–5V Encoder) is a high-torque brushed DC motor engineered for robotics and motion-control applications. It combines a durable steel planetary gearbox with a precision Hall-effect quadrature encoder, delivering exceptional torque output and accurate speed feedback.
Designed around the goBILDA build system, the motor features a robust 8 mm REX output shaft and M4 threaded mounting holes on the 16 mm square goBILDA pattern, ensuring seamless integration with a wide range of mechanical components. Its 188:1 gear ratio provides a low-speed, high-torque output ideal for drive systems, arms, or heavy-duty mechanisms.

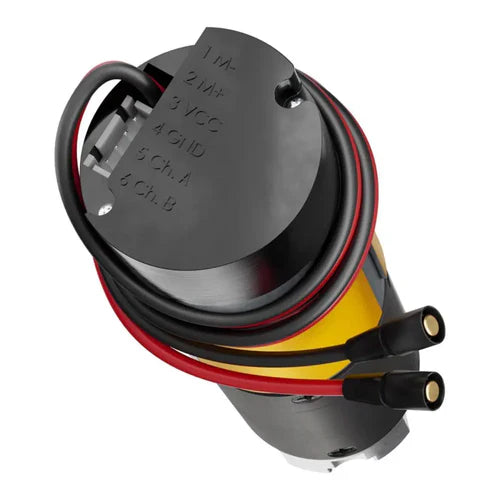

This motor offers high reliability, smooth performance, and easy connectivity through 3.5 mm bullet connectors and a 4-position JST encoder connector.
Key Features
• High-torque 188:1 steel planetary gearbox
• Precision magnetic Hall-effect encoder (quadrature, 3.3–5 VDC)
• Robust 8 mm REX output shaft for goBILDA compatibility
• Four M4 mounting holes on the 16 mm square goBILDA pattern
• Brushed DC motor with 12 V nominal voltage
• Integrated 3.5 mm bullet power connectors and JST XH encoder plug
• Ideal for robotics drive systems and motion control projects
What’s Included
• 1 × 5203 Series Yellow Jacket Planetary Gear Motor (188:1, 30 RPM, 3.3–5 V Encoder)
Specifications
| Parameter | Specification |
|---|---|
| Motor Type | Brushed DC |
| Nominal Voltage | 12 VDC |
| Gearbox Style | Planetary |
| Gear Ratio | 188:1 |
| Gear Material | Steel |
| No-Load Speed (12 V) | 30 RPM |
| No-Load Current (12 V) | 0.25 A |
| Stall Current (12 V) | 9.2 A |
| Stall Torque (12 V) | 250 kg·cm (3,470 oz-in) |
| Output Shaft Diameter | 8 mm REX |
| Output Shaft Length | 24 mm |
| Wire Length | 470 mm (including connectors) |
| Wire Gauge | 16 AWG |
| Motor Connector Type | 3.5 mm FH-MC Bullet Connectors |
| Encoder Connector Type | 4-Pos JST XH (FH-MC) |
| Encoder Type | Relative, Quadrature |
| Encoder Sensor Type | Magnetic (Hall Effect) |
| Encoder Voltage Range | 3.3 – 5 VDC |
| Encoder Resolution | 5,264 PPR (at output shaft) |
| Mounting Pattern | 16 mm goBILDA Pattern (M4 holes × 10 mm deep) |
| Weight | 528 g |
