🔧 Product Overview

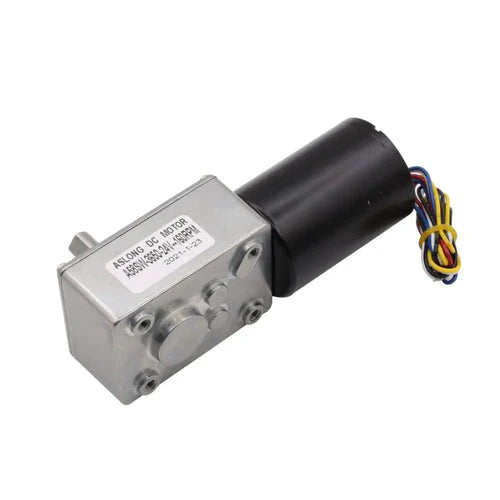

The 5840-3650 24V 80RPM Worm Gear Motor is a high torque DC gear motor designed for applications that require stable output, low speed, and self-locking performance.
Thanks to its worm gear structure, the motor prevents back-driving when power is off, making it ideal for load-holding systems.
Built with a durable all-metal gearbox, this motor delivers reliable performance in demanding robotics and automation environments.
⭐ Key Features
-
Self-Locking Worm Gear Design
Prevents reverse rotation under load when power is removed -
High Torque at Low Speed (80RPM)
Suitable for lifting, positioning, and drive mechanisms -
24V DC Operation
Stable voltage for industrial and robotic systems -
All-Metal Gearbox
Enhanced durability, wear resistance, and long service life -
Compact & Robust Construction
Easy integration into space-constrained designs
🧠 Why Choose a Worm Gear Motor?
Worm gear motors are widely used when applications require:
-
High torque output
-
Load holding without braking systems
-
Smooth and stable motion control
For systems that need strong holding torque and resistance to back-driving, a self-locking worm gear motor is a dependable solution.
📌 Typical Applications
This motor is well suited for:
-
Robotics drive systems
-
Lifting and lowering mechanisms
-
Automated gates and valves
-
Conveyor and transmission systems
-
Positioning platforms and mechanical arms
Its self-locking characteristic enhances safety and stability in vertical or load-bearing applications.
⚖️ Worm Gear Motor vs Other Motor Types
| Motor Type | Advantage | Limitation |
|---|---|---|
| Worm Gear Motor | Self-locking, high torque | Lower efficiency |
| Planetary Gear Motor | High precision, compact | Not self-locking |
| Servo Motor | Fast response | Limited torque holding |
For applications prioritizing holding torque and safety, worm gear motors are often the preferred choice.
📊 Technical Specifications
| Parameter | Value |
|---|---|
| Motor Type | DC Worm Gear Motor |
| Rated Voltage | 24V DC |
| No-load Speed | 80 RPM |
| Gear Type | Worm Gear |
| Gear Material | Metal |
| Self-Locking | Yes |
| Application | Robotics, Automation |
📦 Package Includes
-
1 × 5840-3650 24V Worm Gear Motor
🔍 Summary
The 5840-3650 24V 80RPM Worm Gear Motor offers high torque, self-locking capability, and durable metal gearing, making it a reliable choice for robotics and automation systems that demand stability and load-holding performance.
