The 6V 210:1 75RPM Micro Metal Gearmotor with Encoder is a compact, high-precision DC gearmotor designed for robotics, automation, and DIY electronic projects that require accurate motion control and feedback. Featuring a durable metal gearbox and a built-in Hall-effect encoder, this motor delivers excellent torque output with precise speed measurement.
This gearmotor operates at a rated voltage of 6V, with a no-load speed of 75 RPM and a gear reduction ratio of 210:1, making it an ideal choice for applications demanding high torque and controlled movement. The integrated encoder provides 420 pulses per revolution, enabling real-time monitoring of motor speed and position for closed-loop control systems.
Equipped with a 9.0 mm D-profile metal output shaft, the motor is fully compatible with Pololu wheels (42x19mm and 32x7mm), ensuring easy integration into a wide range of mechanical assemblies. Its lightweight yet robust construction (only 18 g) makes it suitable for compact robots and precision devices.
Key Features
-
Rated Voltage: 6.0V
-
Motor Speed (before reduction): 15,000 RPM
-
Gear Reduction Ratio: 210:1
-
No-Load Speed: 75 RPM @ 6V
-
Rated Speed: 42 RPM @ 6V
-
Rated Torque: 1.4 kg·cm
-
Instant Torque: <2.8 kg·cm
-
No-Load Current: 60 mA
-
Rated Current: 170 mA
-

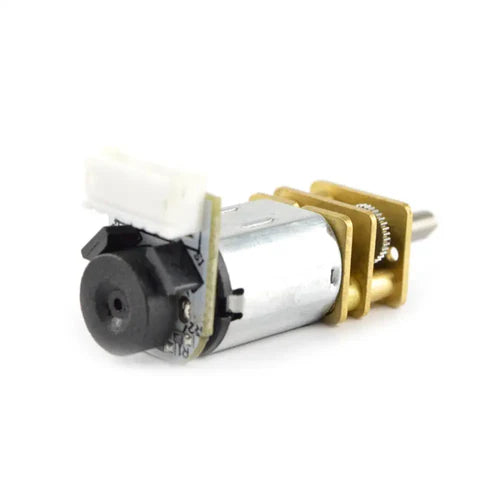

Encoder Resolution: 420 pulses per revolution
-

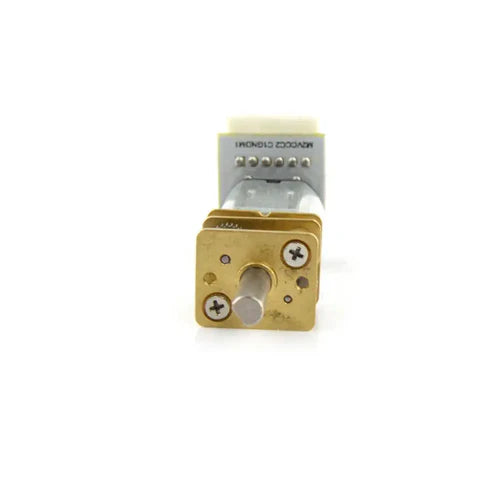

Shaft: 9.0 mm long, D-profile metal output shaft
-
Weight: 18 g
-
Compatible with Pololu 42x19mm and 32x7mm wheels
What’s Included
-

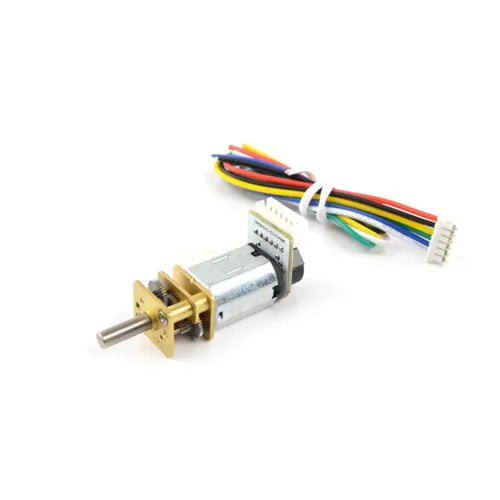

1 × 6V 210:1 Micro Metal Gearmotor with Encoder
-

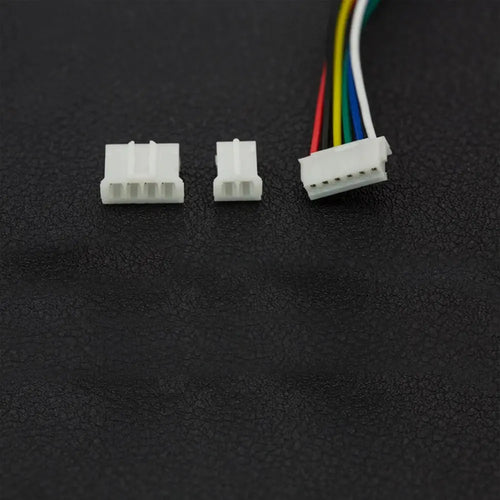

1 × 6-pin connection cable
-
1 × 2-pin 1.5 mm JST connector
-
1 × 4-pin 1.5 mm JST connector
Applications
-
Robotics and autonomous vehicles
-
Precision motion control projects
-
Smart actuators and automation systems
-
Hobby electronics and DIY prototypes
