Description

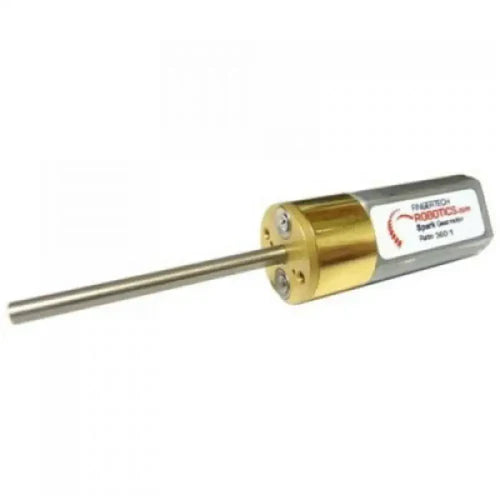

The 6V, 26RPM, 188 oz-in 360:1 Spur Gear Motor – Gold Spark is a high-performance micro gear motor engineered for robotics and combat applications where strength, reliability, and compact size matter. Built around a Mabuchi FK-050 motor with a precision-machined spur gear reduction system, this motor is capable of delivering up to 188 oz-in (13.58 kg-cm) of torque at a steady speed of 26 RPM.
Its extra-long 3mm output shaft, internally triple-supported, allows wheels or other drive components to be mounted directly for maximum durability. Designed with the same face mount pattern as the discontinued BaneBots 16mm gear motors, it serves as a direct drop-in replacement for combat-worn motors without requiring modifications.
Despite its rugged build, the motor remains lightweight at only 28 g (0.99 oz), making it ideal for small robots, battle bots, and high-torque applications where space is limited.
Key Features:
-
Operating Voltage: 6V
-
Gear Ratio: 360:1 spur gear reduction
-

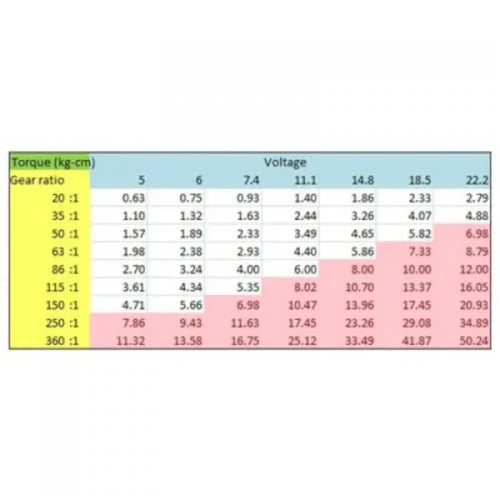

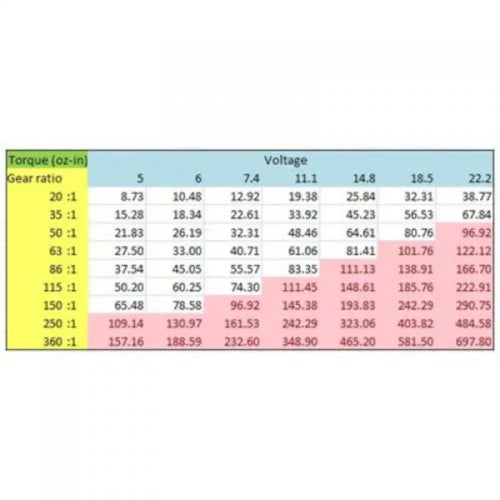

Torque: 188 oz-in (13.58 kg-cm)
-
Speed: 26 RPM
-
Weight: 28 g (0.99 oz)
-
Rugged combat-ready design – built to withstand high-stress use
-
Triple-supported 3mm shaft for direct wheel mounting
-
Drop-in replacement for obsolete BaneBots 16mm gear motors
-
Compact yet powerful Mabuchi FK-050 motor core
Specifications:
-
Gearbox Length: 11.6 mm (0.455")
-
Total Length: 40.3 mm (1.59")
-
Gearbox Diameter: 15.5 mm (0.61")
-
Shaft Diameter: 3 mm (0.12"), with flat along length
-
Shaft Length: 38 mm (1.5")
-
Mounting Holes: (2) #2-56 spaced 11 mm (0.433") apart
-
⚠ Do not use screws that protrude more than 4 mm (0.156") into gearbox
-
