Description

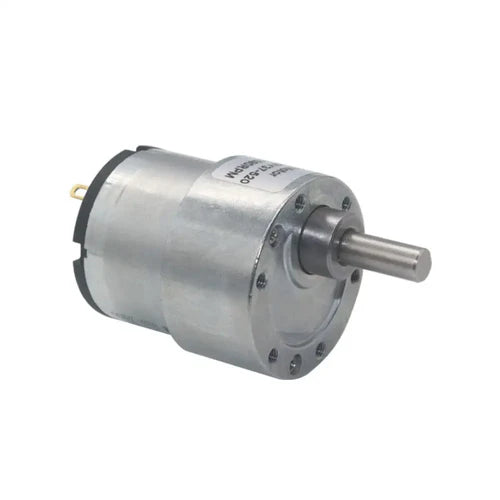

The 6V 29RPM Brushed DC Gear Motor with 37mm gearbox is a high-performance motor designed for applications requiring high torque, stable output, and low noise. Equipped with a durable 37mm diameter gearbox, it delivers high efficiency with minimal power loss, low current consumption, and no spark during operation. The motor is available in 6V, 12V, and 24V versions, operates clockwise when viewed from the output shaft side, and maintains reliable performance across demanding environments. With a no-load speed range of 7–960 RPM and multiple gear ratio options from 1:6.25 up to 1:810, it is widely used in robotics, automation, medical pumps, stirrers, surgical tools, centrifugal machines, actuators, fans, electric curtains, small appliances, and valves. Designed for durability and compact size, this geared motor is an excellent choice for industrial and DIY projects.
Specifications
• Max Power: 10W
• Max Torque: 25kg/cm

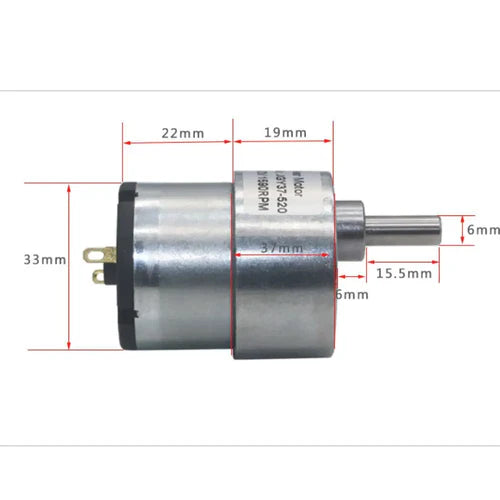

• Motor Diameter: 33mm
• Motor Body Length: 22.7mm
• Gearbox Diameter: 37mm
• Motor Size: 37mm × 33mm × 53mm
• Output Shaft Diameter: 6mm
• Output Shaft Length: 15mm
Operating Conditions
• Rated Voltage: 6V (also available in 12V and 24V)
• Direction of Rotation: CW when viewed from output shaft side
• Operating Temperature and Humidity: -10°C ~ +50°C, 30% ~ 80% RH
• Storage Temperature: -20°C ~ +60°C
• Motor Position: Horizontal when measuring
• Power Supply: Regulated DC power supply
Gear Ratio Options
• 1:6.25, 1:10, 1:18.8, 1:30, 1:56, 1:90, 1:131, 1:168, 1:210, 1:270, 1:506, 1:810
What’s Included
• 1 × DGB37-520 DC Geared Motor
