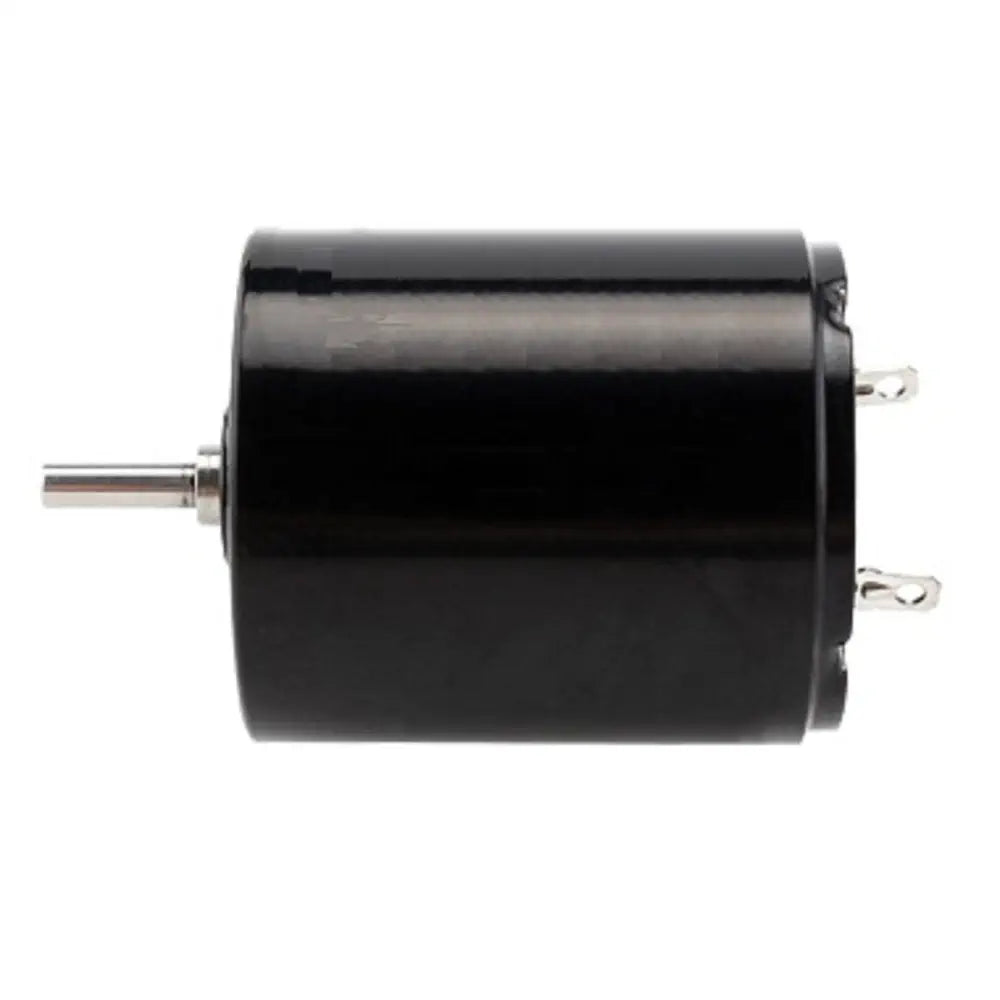

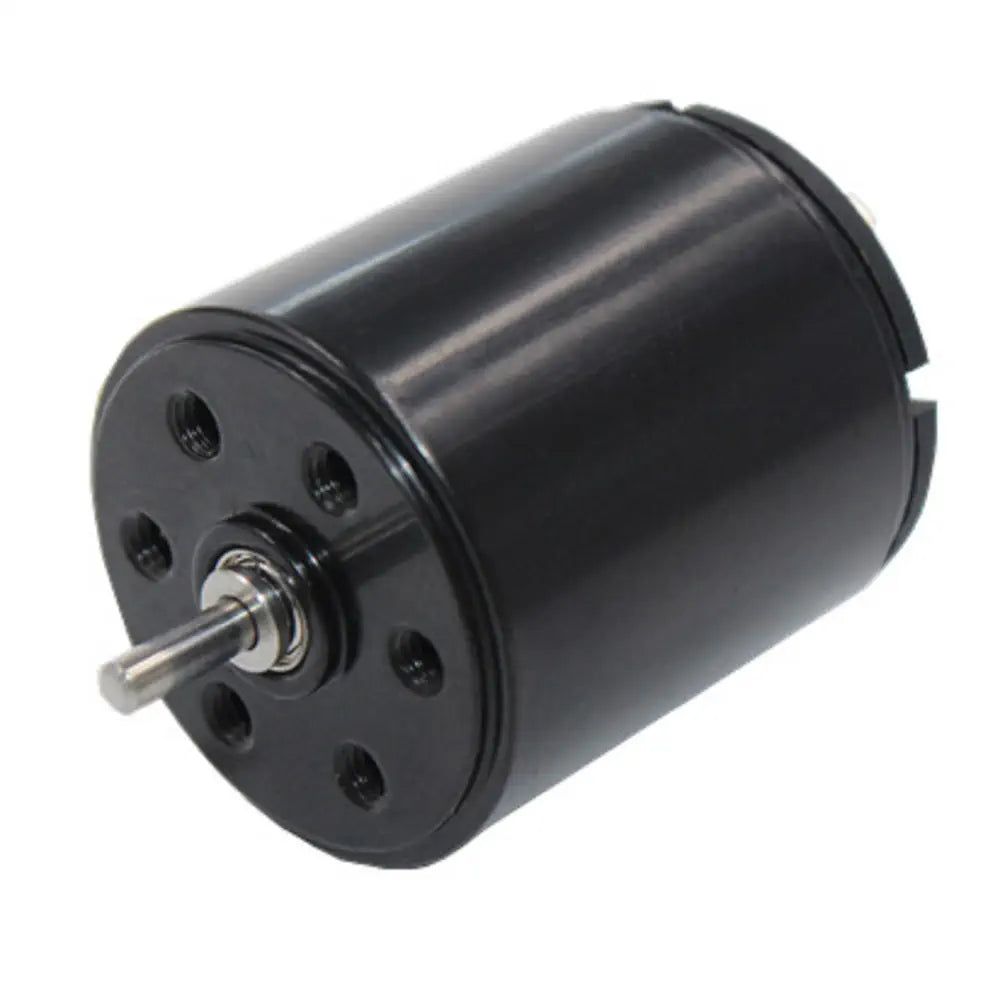

Product Description
The 6V DC Coreless Motor (22mm diameter × 25mm length) is a high-performance brushed coreless DC motor designed for applications requiring fast response, low inertia, and smooth operation. Featuring an iron-free rotor design, this motor delivers superior efficiency, reduced vibration, and stable speed control compared to traditional iron-core DC motors.
With a no-load speed of up to 5750 RPM, compact size, and lightweight construction, this coreless motor is ideal for robotics, automation systems, precision instruments, medical devices, and compact motion control applications where space and performance are critical.
Key Features
-
Coreless (iron-free) rotor design for low inertia and fast acceleration
-
High efficiency and smooth rotation with reduced noise and vibration
-
Stable speed performance under varying loads
-
Compact and lightweight construction for space-constrained designs
-
Low starting voltage for sensitive control applications

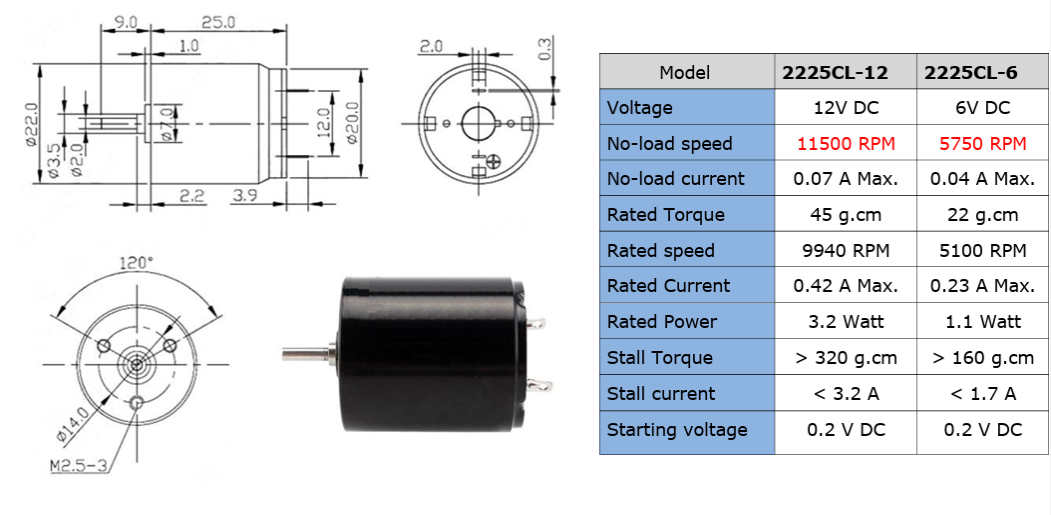

Specifications
| Parameter | Value |
|---|---|
| Motor Type | Brushed DC Coreless Motor |
| Rated Voltage | 6V DC |
| No-Load Speed | 5750 RPM |
| Rated Speed | 5100 RPM |
| No-Load Current | ≤ 0.04 A |
| Rated Current | ≤ 0.23 A |
| Rated Torque | 22 g·cm |
| Rated Power | 1.1 W |
| Stall Torque | ≥ 160 g·cm |
| Stall Current | ≤ 1.7 A |
| Starting Voltage | 0.2 V DC |
| Motor Diameter | 22 mm |
| Motor Length | 25 mm |
| Shaft Diameter | 2 mm |
| Shaft Length | 9 mm |
Applications
This coreless DC motor is widely used in:
-
Robotics and automation systems
-
Precision motion control mechanisms
-
Medical and laboratory equipment
-
Handheld and portable electronic devices
-
Aerospace and instrumentation applications
Package Includes
-
1 × 6V DC Coreless Motor (22mm × 25mm)
Notes
-
Ensure proper voltage and current supply for optimal performance
-
Use appropriate motor drivers for speed and direction control
-
Not recommended for high-shock or heavy-load applications without gearing
