Description:

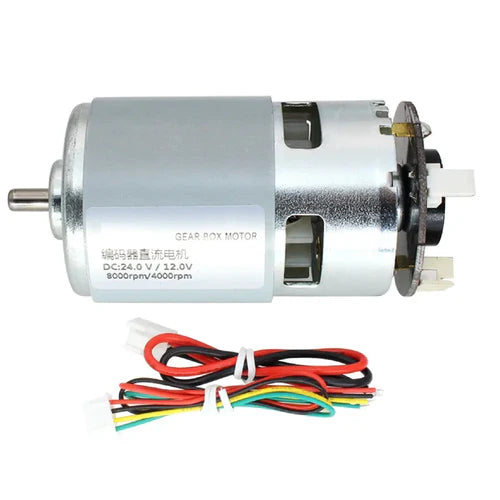

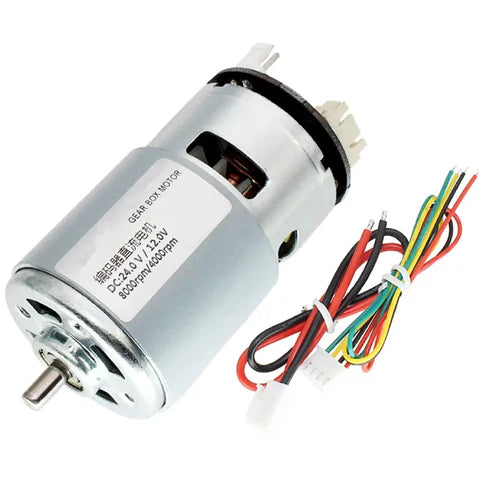

The 775 Size DC Motor with Encoder is a high-performance 42D × 66.5L brush motor designed for applications requiring high torque, precise control, and long-lasting reliability. Equipped with an integrated Hall sensor and 2-channel encoder (17 PPR), this motor provides accurate position feedback, making it ideal for robotics, intelligent vehicles, and automated systems.
Built with a cooling blade inside, this motor ensures balanced heat dissipation and stable power output, delivering a rated torque of 0.4 Kg·cm and a no-load speed of 4100 RPM. Its robust design guarantees a long lifetime of over 1000 hours under normal operating conditions. The motor achieves rated performance at 12V with a rated speed of 3200 RPM, rated current of 2.5 A, and power of 13W. Stall torque reaches 2.2 Kg·cm with a stall current of 12 A, ensuring strong startup performance for demanding applications.
This versatile motor is perfect for:
-
Intelligent self-balancing two-wheelers
-
Intelligent tracking vehicles and smart robots
-
Automated home appliances
-
Camera gimbal arms and robotic actuators
-
Gear reducer integration for custom machinery
Specifications:
-
Model: 775S-EN 12V
-
Motor Dimensions: 42D × 66.5L mm
-
No-load Speed: 4100 RPM
-
No-load Current: < 0.45 A
-
Rated Torque: 0.4 Kg·cm
-
Rated Speed: 3200 RPM
-
Rated Current: 2.5 A
-
Power: 13 W
-
Stall Torque: 2.2 Kg·cm
-
Stall Current: 12 A
-
Encoder: Hall sensor, 2 channels, 17 PPR
High-speed, high-torque, and long-life – the 775 Size DC Motor with Encoder is a reliable choice for precision robotics and intelligent automation projects.
