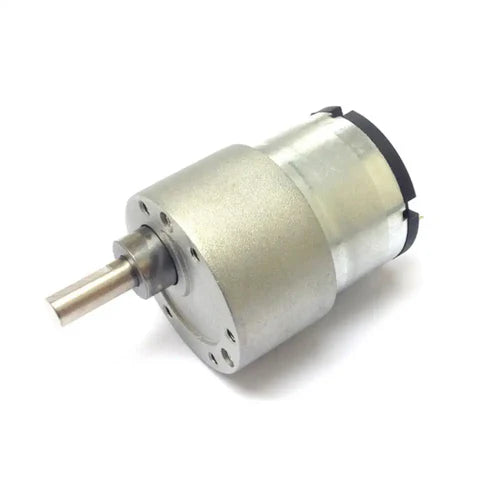

The Cytron 12V 380RPM 90.27oz-in High Power Spur Gearmotor is a compact yet powerful DC brushed motor with an integrated 30:1 spur gearbox. Designed for medium-sized robots, omni-drive robots, sumo robots, fighting robots, and other mechanical applications, this motor delivers reliable performance at an affordable cost. It is widely used in student final year projects, robotics competitions, and lightweight mechanisms requiring high torque and precise speed control.
Key Features:
• Motor Type: DC brushed motor with integrated spur gearbox
• Voltage: 12V
• Free Run Current: 0.3A
• Loaded Current: 1A
• Stall Current: 3.7A
• Free Run Speed: 380RPM
• Stall Torque: ~6.5kg-cm (637.432 mN.m / 90.27oz-in)
• Gear Ratio: 30:1
• Shaft: D-shaped, 6mm diameter, 15.5mm length
• Weight: 160g
• Dimensions: 37 x 37 x 63mm
• Thread Holes: 6 × M3, thread depth 3.2mm
Applications:
• Medium-sized robots, omni-drive robots, sumo robots, fighting robots
• Educational robotics and student projects
• Lightweight mechanisms such as bank note machines and handling machines
Why Choose Cytron 12V 380RPM Gearmotor:
• Compact and lightweight design for easy integration
• High torque for demanding applications
• Reliable and cost-effective solution for robotics and automation projects
• Widely tested in competitions and educational projects
Optimize your robotics project or mechanism with the Cytron 12V 380RPM 90.27oz-in High Power Spur Gearmotor, combining high power, precision, and reliability in a compact package.
