Product Description:

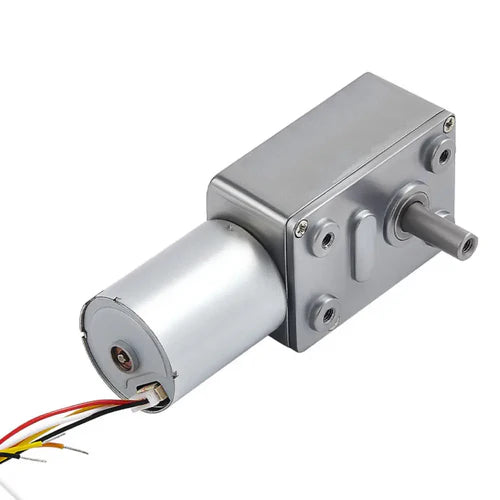

The DC Brushless Worm Gear Motor, 12V, 150 RPM is a compact, high-performance motor engineered for precision, durability, and versatile applications. With a robust brushless design and self-locking worm gearbox, this motor delivers reliable operation and long-lasting endurance in a miniature package.
Key Features:
-
Compact & Versatile: Miniature motor dimensions of 24.3 mm (D) × 30.8 mm (L) for the motor and 46 mm (D) × 32 mm (L) × 22 mm (H) for the gearbox, ideal for tight spaces and specialized installations.
-
High-Performance Brushless Motor: Provides smooth and efficient power delivery with low heat generation, low expansion rate, and a rated output of 7.2 Watts.
-
Self-Locking Worm Gear: Prevents reverse rotation of the output shaft when the motor is switched off, ensuring safety and precision in static applications.
-
Directional Flexibility: The motor shaft rotation direction can be reversed by changing the polarity of the input voltage.
-
Durable Shaft Design: D-shaped output shaft (6 mm × 14 mm) with a screw hole ensures secure installation and reliable torque transfer.
-
Powerful Torque: Rated torque of 1.5 Kg·cm, stall torque of 6.4 Kg·cm, and smooth operation at 112 RPM under load.
-
Wide Applications: Perfect for robotics, automated mechanisms, conveyor systems, and other precision equipment requiring compact, high-torque, and reliable motor solutions.
Specifications:
-
Model: 4632WG 2430BL 40 12V
-
Voltage: 12 V DC
-
No-load Speed: 150 RPM
-
No-load Current: 0.12 A
-
Rated Torque: 1.5 Kg·cm
-
Rated Speed: 112 RPM
-
Rated Current: 0.6 A
-
Rated Power: 7.2 W
-
Stall Torque: 6.4 Kg·cm
-
Stall Current: 2 A
-
Motor Dimensions: 24.3 mm (D) × 30.8 mm (L)
-
Gearbox Dimensions: 46 mm (D) × 32 mm (L) × 22 mm (H)
-
Shaft: 6 mm (D) × 14 mm (L), D-shaped with screw hole
Why Choose This Motor:
Designed with meticulous craftsmanship, this brushless worm gear motor balances compact dimensions with high torque output, low heat emission, and long operational life. Its self-locking gearbox and flexible installation options make it a reliable solution for precision automation and robotics projects.
